On Grid Inverter with Wide Temperature Range -40°C to 60°C Grid Monitoring and Anti-Islanding Protection for Energy Conversion

On Grid Inverter with Wide Temperature Range -40°C to 60°C Grid Monitoring and Anti-Islanding Protection for Energy Conversion

Brand Name:

Greef

Certification:

CE

Model Number:

ACPCS

Contact Us
Request A Quote
Product Details
Alititude:
2000m
Protectionfeatures:
Overvoltage, Overcurrent, Anti-islanding
Protection Level:
IP20
Battery Input DataRated Battery Voltage(Vdc):
400
Certifications:
CE
Operatingtemperaturerange:
-40°C To 60°C
Communication Mode:
Ethemet, RS485, WIFI
Grid Monitoring:
Yes
Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Payment Terms
T/T,Western Union,MoneyGram
Supply Ability
Supply Ability
Product Description
Operating Temperature Range -40°C to 60°C On Grid Inverter
Product Overview

The GREEF ENERGY multi-functional converter combines several key functions into a single, versatile device. It supports AC-to-DC rectification specifically designed for permanent magnet (PM) generators, enabling efficient conversion and regulation of electrical energy. Additionally, it offers battery charging capabilities, ensuring reliable energy storage and management.

Beyond rectification and charging, this converter also performs DC-to-AC inversion, allowing stored or generated direct current to be converted back into alternating current for practical use. Integrated within the system is a sophisticated energy management module that optimizes power flow and enhances overall system efficiency.

One of the standout features is its configurable dual LCD touchscreen interface, providing easy monitoring and parameter adjustment. Leveraging cutting-edge converter technology, it delivers stable voltage and frequency control for permanent magnet synchronous generators (PMSGs), guaranteeing smooth and uninterrupted power supply.

The device can be configured to operate in grid-tied mode, enabling seamless switching for grid-connected operation and grid charging, supporting flexible integration with larger power networks.

GREEF ENERGY multi-functional converter system diagram
Key Features
  • EMS Smart Energy Management System: Advanced solutions for efficient energy utilization across various scenarios
  • Versatile Operating Modes: Configurable off-grid, grid-tied, and grid charging modes
  • Intuitive Double LCD Smart Touch Screen: User-friendly interface for monitoring and control
  • Advanced Generator Power Curve Tracking: Ensures efficient synchronization and maximizes generator performance
  • Reliable Dual Backup Power Supply: Supports both AC and DC backup options for continuous auxiliary power
  • Unbalanced Load Control Technology: Manages unbalanced loads effectively for stable operation
  • Standard Communication Protocol: RS 485 Modbus RTU protocol for seamless integration
Optional Features
  • PWM dump load protection against over voltage and over speed
  • Water gate motor control functionality
  • WIFI and LAN remote monitoring and control application support
  • Customizable sensor control functions
  • Static Transfer Switch (STS) for both grid-tied and off-grid applications
Technical Specifications
Operating Temperature Range -40°C To 60°C
Rated Battery Voltage (Vdc) 400
Communication Mode Ethernet, RS485, WIFI
Rated Input Voltage (V) (AC Side - Off-grid) 400
Rated Output Voltage 400V
Protection Level IP20
Cooling Method Intelligent Air Cooling
Grid Monitoring Yes
Topology AC-DC Rectifier, DC-DC Buck Boost, DC-AC Inverter, EMS
Rated Power 100-1000kW
Applications
  • Hydropower: Utilized in 110 kW hydropower systems with sluice gate motor control integration
  • Wind Power: Specialized models for wind power systems from 100 kW to 1000 kW
  • Agricultural Irrigation: Power conversion and control for irrigation systems (100-1000kW range)
  • General Off-Grid / Grid-Tied Systems: Universal generator-battery hybrid converter for diverse energy scenarios
Customization Options

The Greef ACPCS Integrated Grid Inverter is CE certified and operates efficiently within a rated input voltage range of 150V-550V. With advanced topology including AC-DC Rectifier, DC-DC Buck Boost, and DC-AC Inverter with EMS, it ensures reliable energy conversion.

Designed to perform under diverse environmental conditions with operating temperatures from -40°C to 60°C and altitude tolerance up to 2000 meters. Minimum order quantity is 1 set with negotiable pricing and approximately 25 working days delivery time.

Payment terms include T/T, Western Union, and MoneyGram with reliable supply chain management.

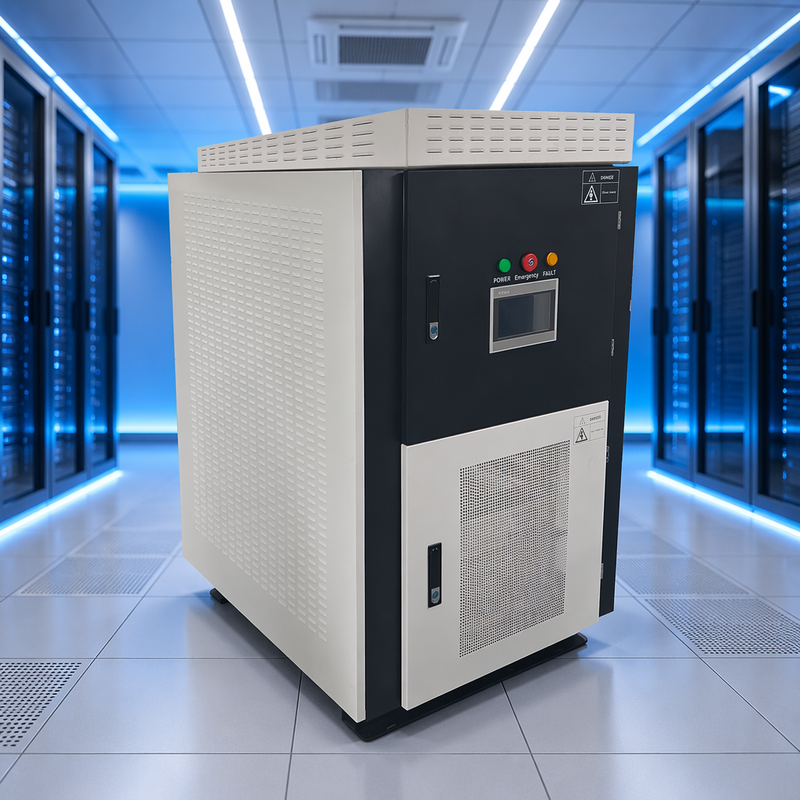

Greef ACPCS Integrated Grid Inverter unit
Packaging & Shipping

Packaging: Each unit is securely packaged using anti-static protective foam and custom-designed cardboard boxes with cushioning against shocks and vibrations. Includes all accessories, user manuals, and warranty information.

Shipping: Delivered via trusted carriers with tracking available. Shipping times vary by destination with expedited options available. All shipments are insured against loss or damage during transit.
