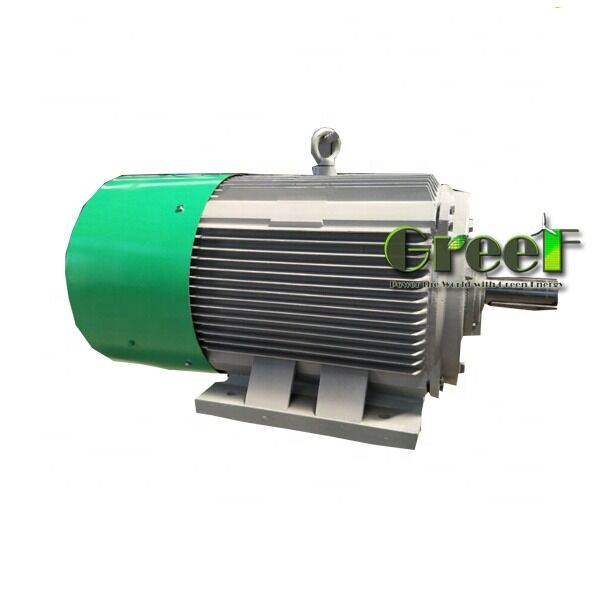

20KW Air-cooled Or Water-cooled Permanent Magnet Generator PMG with 50Hz/60Hz Rated Frequency

The fundamental concept behind a permanent magnet generator revolves around the rotor containing permanent magnet materials that produce a steady magnetic field. This magnetic field remains constant as a result of the properties of the permanent magnets embedded within the rotor.

When a prime mover, which could be a wind turbine, water turbine, or engine, drives the rotor to spin, the magnetic field created by the rotor begins to rotate. This rotating magnetic field intersects with the conductors located in the stator windings surrounding the rotor.

Following the law of electromagnetic induction, the movement of the magnetic field through the stator conductors induces an electromotive force within the stator windings. When these windings are connected to an external electrical circuit, this induced electromotive force enables the generator to deliver electrical energy to the circuit.

• Exceptional energy efficiency with optimized performance
• Advanced power-saving technologies reducing electricity consumption
• High power factor for maximum electrical power utilization
• Compact design for easy installation in limited spaces
• High power density for superior performance
• Effortless starting with large starting pitch
• Low noise operation for quieter working environments
• Low temperature rise enhancing durability and lifespan
• High reliability with consistent, dependable functionality
• Smooth torque and speed control with high rigidity

Wind Power Generation: Core components of direct-drive and semi-direct-drive wind turbines providing exceptional efficiency at variable speeds.

Automotive Sector: Primary traction motors or auxiliary generators in electric and hybrid vehicles, enhancing performance and energy efficiency.

Marine Applications: High reliability for ship shaft generators and main/auxiliary power systems aboard vessels with minimal maintenance requirements.

Backup Power Systems: Integration within diesel and gas generator sets for quick response times and dependable emergency power.

High-Speed Applications: Support for microturbines and flywheel energy storage systems demanding precision and durability.

Industrial Settings: Preferred for specialized applications requiring high power density and exceptional reliability in demanding conditions.

Greef offers customized solutions for the Permanent Magnet Generator, model GDF, designed and manufactured in China with CE certification. Our magnetic power generator is a high-quality, brushless permanent magnet alternator that ensures efficient and reliable performance.

We specialize in 3 Phase AC Permanent-magnet generators made from rare-earth magnets such as Neodymium, providing superior magnetic strength and durability. The generator operates at a rated frequency of 50Hz/60Hz with variable rotation speed typically ranging from 300 to 3600 RPM.

Additional Details:

• IP54 protection grade for dust and water splash resistance
• Secure packaging with foam and plywood cases
• Delivery within 25 working days
• Minimum order quantity: 1 set
• Negotiable pricing
• Payment terms: T/T

The Permanent Magnet Generator is carefully packaged to ensure perfect condition upon arrival:

• Custom-fit foam mold to prevent movement during transit
• Sturdy, double-walled corrugated cardboard box for impact protection
• Moisture-absorbing packets included for humidity protection
• Clear exterior labeling with handling instructions
• Reliable carriers with tracking capabilities
• Shipping options: air, sea, or land freight
• Customized shipping solutions available
• Thorough inspection and testing before dispatch
• Complete documentation included (user manuals, warranty cards, certificates)
