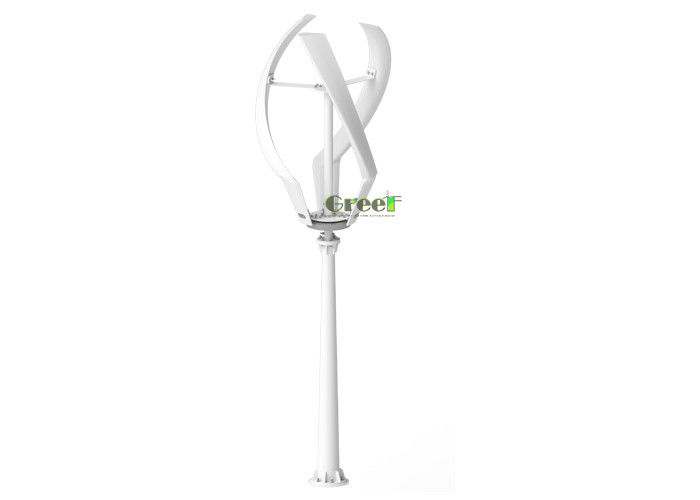

Large Image :  Mini 200W Wind Turbine , Portable Wind Turbine IP54 Protection Grade

Product Details:

Place of Origin: China
Brand Name: GreeF
Certification: CE
Model Number: Rose-2.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Foam + Plywooden Case
Delivery Time: 25-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 400 sets per month
Contact Now
Detailed Product Description
Rated Power: 200W Start Wind Speed: 1m/s
Rated Wind Speed: 10m/s Rated Rotor Speed: 200RPM
Generator Type: Disc Coreless Permanent Magnent Generator Generator Material: Aluminium Body+copper Wire+Nd-Fe-B
Blades Number/Material: 3pcs / FRP Optional Voltage: 12 - 24Vac
Tower Height: 6m Free Folding Tower





200W Vertical Axis Wind Turbine





Product Parameters

200W vertical axis wind mill are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
GreeF 200W vertical axis wind mill are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.







Model ROSE-2.0
Performance
Rated Power 200W
Max Power 250W
Start Wind Speed 1.0m/s (2.24mph)
Rated Wind Speed 10m/s(22.4mph)
Working Wind Speed 1-25m/s (2.24-56 mph)
Safety Wind Speed 50m/s(112mph)
Physical Parameters
Blades Length 1.16M(3.80ft)
Blades Rotor Diameter 0.75M(2.46ft)
Blades Material &Quantity FRP /3PCS
Mill Weight 33kg(11+22)
Swept Area 0.90㎡
Tower Height 6m(19.68ft.)
Generator Parameters
Generator Type Axial Flux Coreless outer rotor disc permanent magnet direct drive generator
Rated Speed 200RPM
Start Torque <0.1N.M
Option Voltage 12-24V
Protection Method Electromagnetic Brake +PWM
Protection Grade IP54
Working Temperature -40-50℃
Life time 20 Years





Project Details Show

Mini 200W Wind Turbine , Portable Wind Turbine IP54 Protection Grade




Mini 200W Wind Turbine , Portable Wind Turbine IP54 Protection Grade

Application
Mini 200W Wind Turbine , Portable Wind Turbine IP54 Protection Grade

Project Show

Mini 200W Wind Turbine , Portable Wind Turbine IP54 Protection Grade



Our Company

Qingdao Greef New Energy Equipment Co., Ltd are global supplier, Gold Plus Supplier on Alibaba.com.
As TOP 3 supplier of generator products all our products quantliy and on time delivery are guaranteed by alibaba.com.

Our main Vertical Axis Wind Turbines are free 3 years warranty
All lifelong technical support and part cost supply.
