Electricity Generation Permanent Magnent Generator with Rated Power 10kW

Electricity Generation Permanent Magnent Generator with Rated Power 10kW

Permanent Magnent Generator 10kW

IP54 Permanent Magnent Generator

3phase AC Synchronous Generator

Place of Origin:

Qingdao

Brand Name:

Greef

Certification:

CE

Model Number:

PERMANENT MAGNET GENERATOR

Contact Us
Request A Quote
Product Details
Cooling Method:
Air Cooling
Power Range:
500W-5000kw
Rated Rotate:
20rpm-3000rpm
Rated Voltagee:
Custmoized
Application:
Electricity Generation
Rated Speed:
3000rpm
Rated Power:
10kW
Classification Of Degrees:
IP54
Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden case
Delivery Time
25 working days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
Supply Ability
Product Description

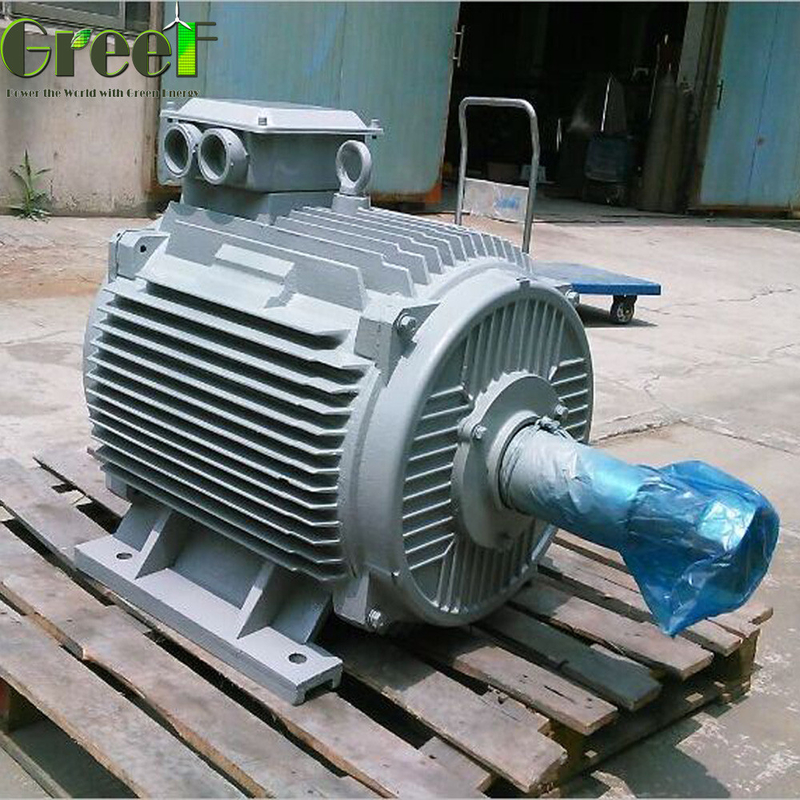

Electricity Generation Permanent Magnent Generator with Rated Power 10kW 0

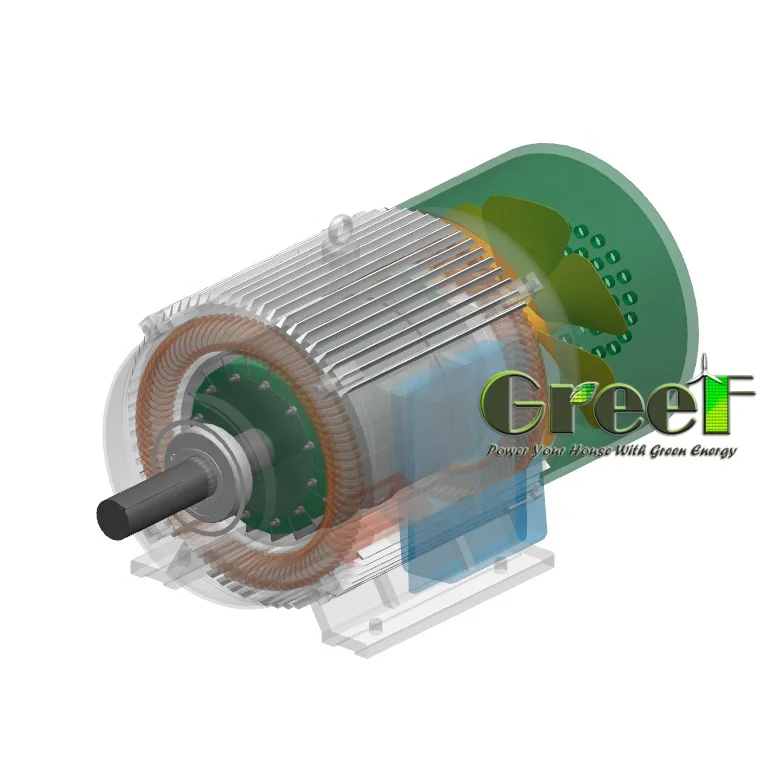

Electricity Generation Permanent Magnent Generator with Rated Power 10kW 1

Product Description:

Permanent Magnet Alternator Product Overview

The Permanent Magnet Alternator is a high-performance, durable and efficient electrical generator that utilizes advanced technology for a wide range of applications. It is designed to provide reliable power supply in various industries such as renewable energy, transportation, and industrial manufacturing.


Iron Core: Cold Rolled Silicon Steel Sheet

The Permanent Magnet Alternator features a robust iron core made of cold-rolled silicon steel sheet. This material is known for its high magnetic permeability, low core loss, and excellent electrical conductivity. As a result, the generator can efficiently produce and transmit electricity, ensuring maximum energy output.


Shaft material: Steel

The shaft of the Permanent Magnet Alternator is made of high-quality steel, providing strength and durability to the generator. This allows the generator to operate smoothly and withstand heavy loads and harsh environments.


Installation: Horizontal

The Permanent Magnet Alternator is designed for horizontal installation, making it easy to integrate into various systems and machinery. This feature allows for flexibility in installation and reduces the generator's footprint, making it suitable for a wide range of applications.


Design: Brushless DC Motor And Drive Technology

The Permanent Magnet Alternator utilizes a brushless DC motor and drive technology, providing high efficiency, low maintenance, and reliable performance. This design eliminates the need for carbon brushes, resulting in a longer lifespan and reduced maintenance costs.


Cooling Method: Fan Cooling

To ensure optimal operating conditions, the Permanent Magnet Alternator is equipped with a fan cooling system. This method effectively dissipates heat generated during operation, preventing overheating and prolonging the life of the generator.



In conclusion, the Permanent Magnet Alternator is a top-of-the-line product that combines advanced technology, robust materials, and efficient design to provide reliable and sustainable power supply. Its versatility, durability, and high performance make it an ideal choice for various industrial and commercial applications. Choose the Permanent Magnet Alternator for a powerful and efficient solution to your power generation needs.

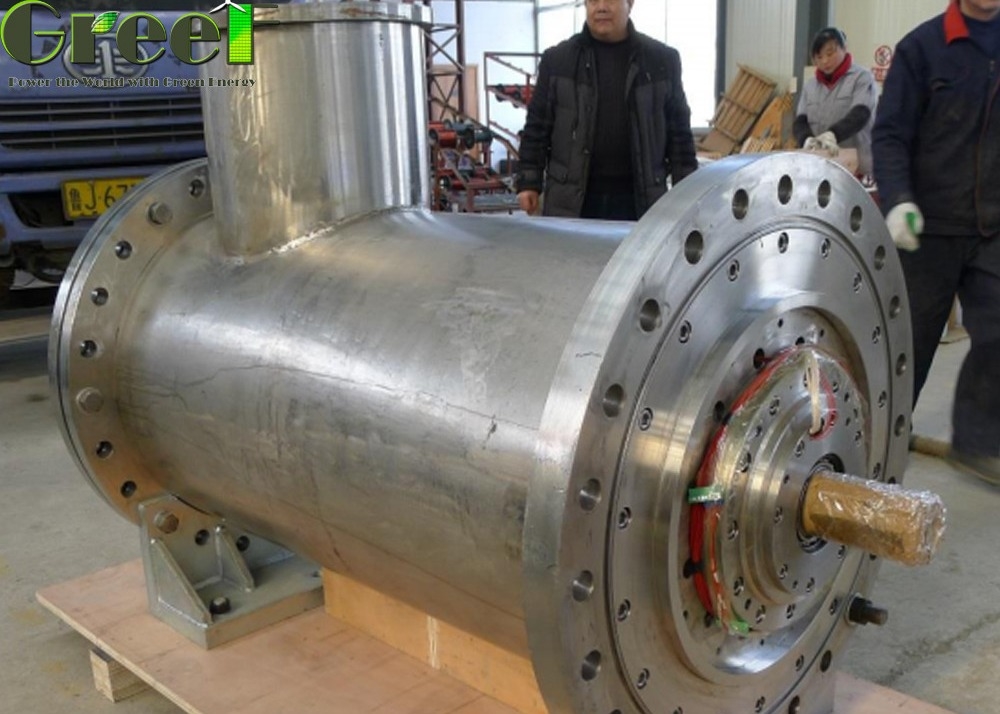

Electricity Generation Permanent Magnent Generator with Rated Power 10kW 2

Applications:

Permanent Magnet Alternator - Providing Reliable and Efficient Power Generation Solutions
Rated power
0.5--5000kW
Rated rotate speed
20--3000rpm
Rated voltage
48--1140Vac
Frequency
60/50Hz
Number of Poles
24
Generator type
3phase AC Synchronous generator
Magnet type
NdFeB
Winding Method
Y
Magnet temperature level
Max.120℃
Winding temperature level
Max.180℃
Effienciency
>95%
Insulate Grade
H
Insulating resistance
100Mohm Min(500Vdc)
Classification of degrees
IP54
Generatror shell material
Cast Iron
Winding material
100% Copper
Shaft material
Steel
Iron Core
Cold rolled silicon steel sheet
Bearing brand
SKF
Cooling Method
Fan Cooling
Weight (N.W /G.W )
132kg /152kg
Packing Size
870*470*570mm
Installation
Horizontal
RATED POWER
RATED SPEED
RATED VOLTAGE
FREQUENCY
0.5KW
20rpm~400rpm
12V~220Vac
10Hz~60Hz
1KW
20rpm~600rpm
12V~220Vac
10Hz~60Hz
2KW
20rpm~1000rpm
12V~400Vac
10Hz~60Hz
3KW
20rpm~1500rpm
48V~690Vac
10Hz~60Hz
5KW
20rpm~1500rpm
48V~690Vac
10Hz~60Hz
10KW
20rpm~1500rpm
120V~690Vac
10Hz~60Hz
15KW
20rpm~3000rpm
120V~690Vac
10Hz~60Hz
20KW
20rpm~3000rpm
120V~690Vac
10Hz~60Hz
25KW
20rpm~3000rpm
120V~1140Vac
10Hz~60Hz
30KW
20rpm~3000rpm
120V~1140Vac
10Hz~60Hz
50KW
20rpm~3000rpm
220V~1140Vac
10Hz~60Hz
80KW
20rpm~3000rpm
220V~1140Vac
10Hz~60Hz
100KW
20rpm~3000rpm
220V~1140Vac
10Hz~60Hz
150KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
200KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
250KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
300KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
500KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
700KW
20rpm~3000rpm
690V~1140Vac
10Hz~60Hz
800KW
20rpm~3000rpm
690V~1140Vac
10Hz~60Hz
1MW
200rpm~3000rpm
690V~1140Vac
10Hz~60Hz
2MW
200rpm~3000rpm
690V~1140Vac
10Hz~60Hz
3MW
200rpm~3000rpm
690V~1140Vac
10Hz~60Hz
20KW
20rpm~3000rpm
120V~690Vac
10Hz~60Hz
4MW
600rpm~3000rpm
690V~1140Vac
10Hz~60Hz
5MW
600rpm~3000rpm
690V~1140Vac
10Hz~60Hz

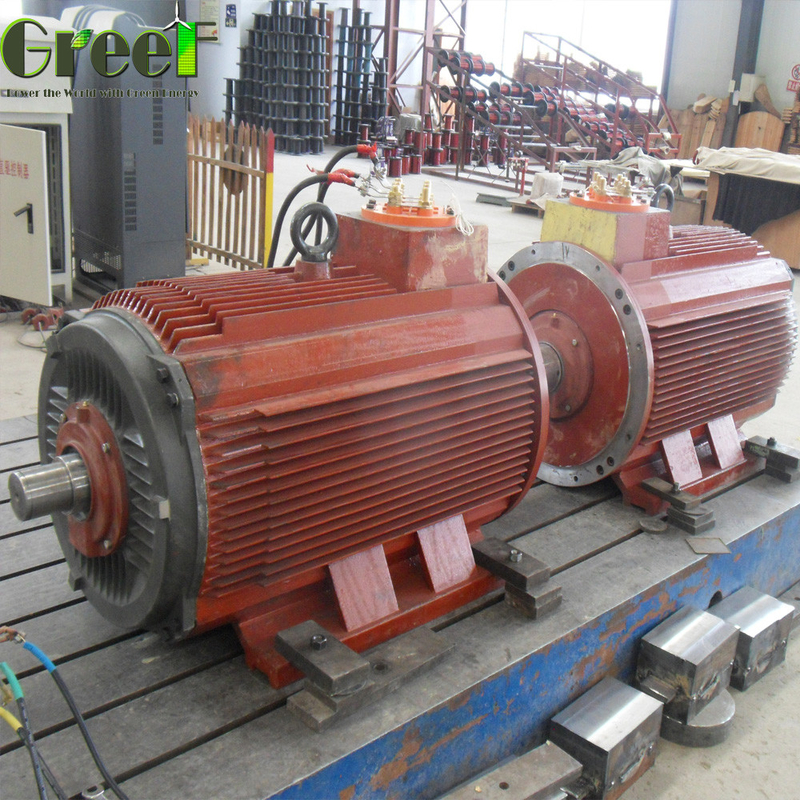

Electricity Generation with Low Speed and Rated Frequency 50Hz/60Hz 3

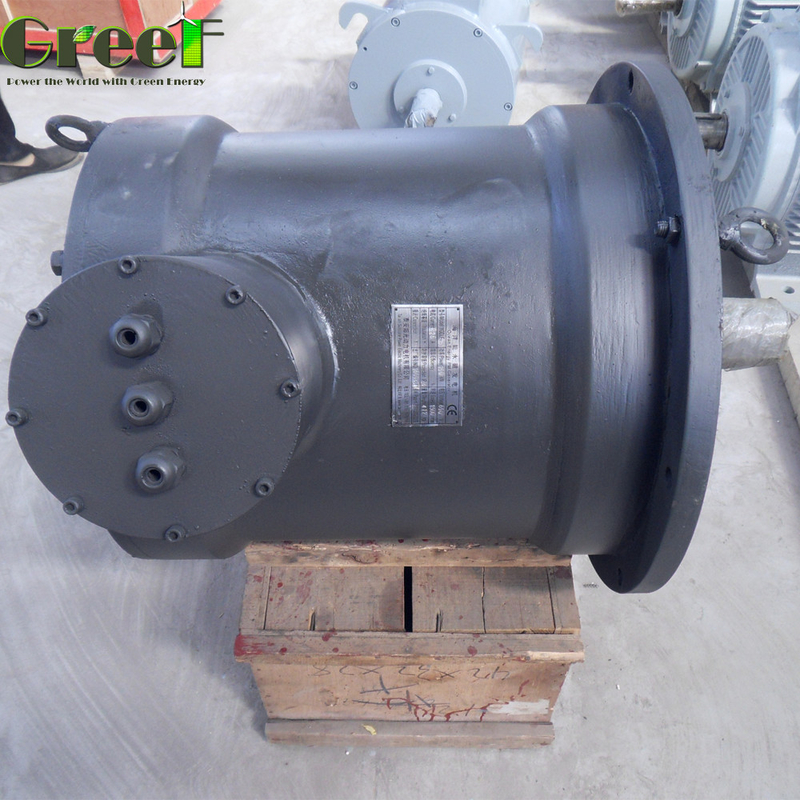

Electricity Generation with Low Speed and Rated Frequency 50Hz/60Hz 4

The Permanent Magnet Alternator, also known as Alternator with Magnet or Permanent Magnet Generator, is a highly efficient and reliable power generation solution offered by Greef. It is designed and manufactured in Qingdao, China, and has been certified by CE, ensuring its quality and safety.



The Alternator with Magnet product is suitable for a wide range of industries and applications, providing stable and continuous power supply. With a minimum order quantity of 1 set, it is suitable for both small and large scale projects.



This product is designed with high-quality materials, including a cold-rolled silicon steel sheet iron core and a sturdy steel shaft. It has a rated power range of 0.5 to 5000kW, making it suitable for various power requirements. The winding temperature level can reach a maximum of 180℃, ensuring its durability and longevity.



The Permanent Magnet Alternator is versatile and can be used for various voltage requirements, with a rated voltage range of 48 to 1140Vac. It is suitable for both on-grid and off-grid applications, providing reliable power supply in remote areas or during power outages.



With its reliable performance and high-quality design, the Permanent Magnet Alternator is a popular choice for various applications such as wind turbines, hydro turbines, diesel generators, and more. It can also be customized according to specific requirements, providing tailored solutions for different industries.



In conclusion, the Permanent Magnet Alternator from Greef is a top-of-the-line power generation solution, providing reliable and efficient performance in various applications. With its advanced technology and high-quality design, it is a valuable addition to any project or industry. Contact Greef today to learn more about this product and how it can meet your power needs.

Customization:



As a leading manufacturer and supplier of Permanent Magnet Alternator, Greef is committed to providing high-quality customized solutions to meet your specific needs.

Key Product Features
  • Permanent Magnet Generator
  • Alternator with Magnet
  • Customized Service
  • CE certification
  • Minimum Order Quantity of 1Set
  • Negotiable Price
  • Foam Plywooden Case Packaging for safe transportation
  • 25Working Days Delivery
  • Payment Terms: T/T, Western Union, Money Gram, L/C
  • Supply Ability to meet your demands
  • Horizontal Installation
  • Max180℃ Winding Temperature level
  • Steel Shaft Material for durability
  • 48-1140Vac Rated Voltage for a wide range of applications
  • SKF Bearing Brand for reliable performance
Electricity Generation Permanent Magnent Generator with Rated Power 10kW 5Contact Us

Get in touch with Greef today to discuss your customized Permanent Magnet Alternator needs. We are always ready to provide you with the best solutions and services.

Packing and Shipping:

Packaging and Shipping of Permanent Magnet Alternator

  • The Permanent Magnet Alternator will be carefully packaged and protected to ensure safe delivery to our customers.
  • Each unit will be placed in a sturdy box with appropriate cushioning materials to prevent damage during transportation.
  • The box will be labeled with the product name, model number, and any other necessary information.
  • For international shipping, the box will also include the required customs documentation.
  • We offer a variety of shipping options to accommodate our customers' needs and preferences.
  • Orders will be processed and shipped within [insert time frame] of receiving payment.
  • We work with trusted shipping carriers to ensure timely and secure delivery of our products.
  • Customers can track their order and receive updates on the shipping status through our online tracking system.
  • If there are any issues with the delivery, please contact our customer service team for assistance.
