150rpm Vertical Wind Turbine Permanent Magnet Generator

150rpm Vertical Wind Turbine Permanent Magnet Generator

150rpm Vertical Permanent Magnet Generator

Wind Turbine Permanent Magnet Generator

Coreless Wire Coil Permanent Magnet Generator

Place of Origin:

Qingdao

Brand Name:

GREEF

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
Product Details
Type:
Wind Power Generator
Rated Power:
300w-30kw
Rated Voltage:
12V / 24V / 48V
Generator Type:
3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator
Application:
Electricity Generation
Material:
Customized Material
Life Time:
20 Years
Size:
Customized Magnet Size
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Alternator for wind generator use inner foam protection outer Plywooden case
Delivery Time
3week
Payment Terms
L/C, Western Union, MoneyGram
Supply Ability
5
Product Description

10kW 150rpm Low speed,

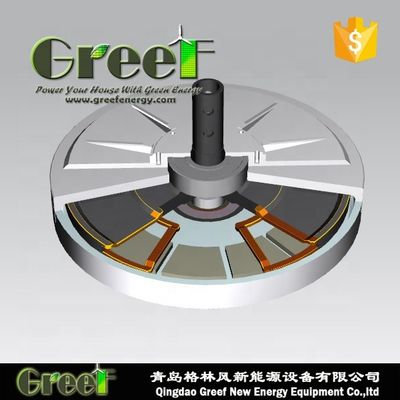

Vertical Wind turbine coreless permanent magnet generator







The magnetic generators are always being used in vertical axis wind turbine generator, diesel gasoline generator , hydroelectric generator (water-power generator) and other generator system which requests very low start torque and low RPM.





Product Description



GDG-10kW-150RPM PMG Parameters:



Model GDG-700-1
Rated Power 10kW
Rated Rotate Speed 150RPM
Option Rated Voltage 12-220Vac
Wending Method Y
Leakage Level <5 ma
Start Torque <1 N/M
Phase Type 3 Phase
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator shell material Aluminum alloy
Shaft material Carbon steel
Bearing NSK Deep groove ball bearing



10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator









10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator

10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator



Product Advantages



1 Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M
2 Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3 Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4 Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5 Gearless, direct drive, low RPM generator.
6 High standard, quality components for use in harsh and extreme environments for wind turbines
7 High efficiency and Low mechanical resistance energy loss
8 Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.



10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator







Detailed Images



10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator



10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator







Packaging & Shipping



1. Generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales,

we will do according to your request.

10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator





Our Services



Generators are free 3 years warranty, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.



10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator







Company Information



Qingdao Greef New Energy Equipment Co., Ltd are global supplier which focus on



Permanent Magnet generator, wind and solar hybrid generator systems solution,wind turbine



blades, controller, invertor etc.



GREEF have its own engineer design team which design products ourselves.

10kW 150rpm Low speed, Vertical Wind turbine coreless permanent magnet generator
