Coreless PMG ! 10KW 100 RPM Permanent Magnet Generator For Vertical Axis Wind Turbine Low Start Torque
Axial flux permanent magnet motor
Magnetic Generator Product Description
F company supply modified kinds of Coreless Disk Permanent Magnet Generatorodels are as follow:
The magnetic generators are always being used in vertical axis wind turbine generator, diesel gasoline generator ,hydroelectric generator(water-power generator) and other generator system which requests very low start torque and low RPM.
Magnetic Generator Overview
The coreless disk permanent magenetic generator is made of high-stability Nd-Fe-B materials.
The specific outer rotor magnetic circuit is designed in a special way. The magnetic generator
has following features:
Low starting torque, Low start wind speed, Low weight,small size ,High generating efficiency
|Magnetic Generator Features
- Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M
- Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
- Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
- Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
- Gearless, direct drive, low RPM generator.
- High standard, quality components for use in harsh and extreme environments for wind turbines
- High efficiency and Low mechanical resistance energy loss.
- Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.
Currently we offer wide range:
------ 300W-100kw FRP wind turbine blades
------ Horizontal Axis Wind Turbine generator (HAWT)
------ Vertical Axis Wind Turbine generator (VAWT)
------ Solar and wind hybrid system
------ Solar panel
------ Permanent Magnent Generator
------ Controllers, invertor, battery and relation products

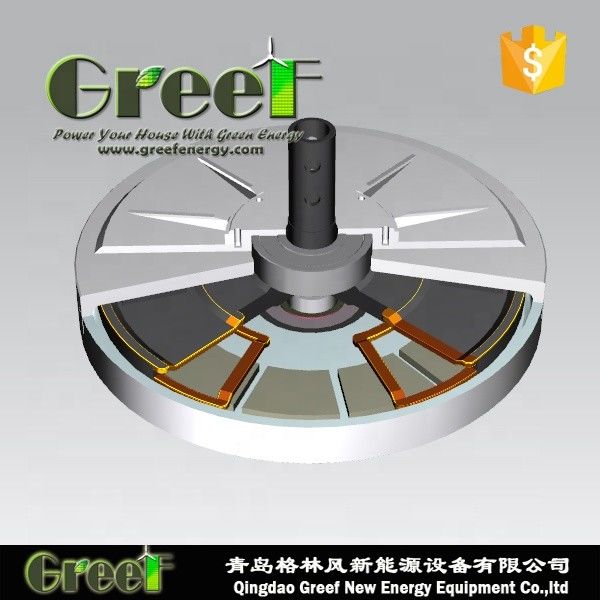

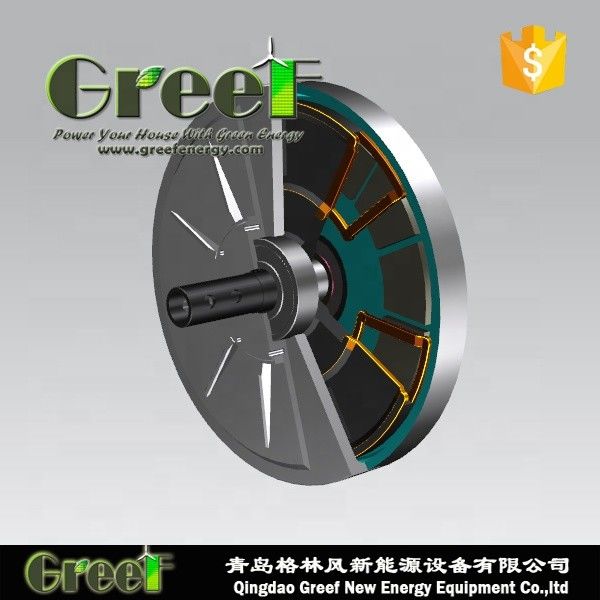

Magnetic Generator Drawing Sample

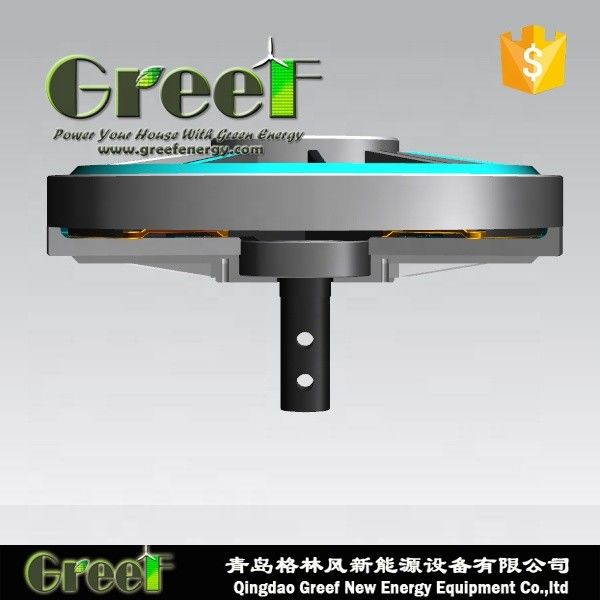

Magnetic Generator Pictures
Magnetic Generator Packaging & Shipping
1. The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.
Our magnetic generator is free 3 years warranty, All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
Please send your inquiry,our team will contact you with 24 hours!
