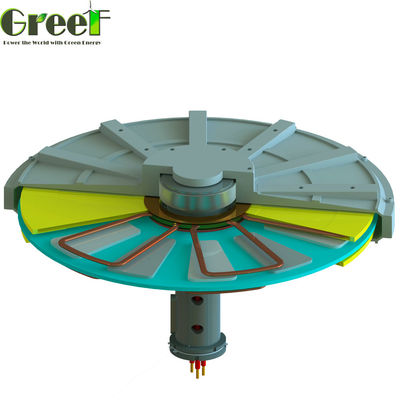

GreeF company supply modified kinds of Coreless Disk Permanent Magnet Generator. The main models are as follow:
Outer Rotor Model:
The shell will rotate to produce electricity, the shaft is fixed.
Inner Rotor Model:
The shaft(axis) will rotate to produce electricity, the shell is fixed.
The magnetic generators are always being used in vertical axis wind turbine generator, hydroelectric generator(water-power generator) and other generator system which requests very low start torque and low RPM.
The coreless disk permanent magenetic generator is made of high-stability Nd-Fe-B materials.
The specific outer rotor magnetic circuit is designed in a special way. The magnetic generator
has following features:
Low starting torque, Low start wind speed, Low weight,small size ,High generating efficiency
Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M
| Model | GDG-0.5KW-200 | GDG-1KW-180 | GDG-1KW-200 | GDG-2KW-120 | GDG-2KW-180 |
| Rated Power | 0.5KW | 1KW | 1KW | 2KW | 2KW |
| Rated Rotate Speed | 200 RPM | 180RPM | 200RPM | 120RPM | 180RPM |
| Rated Voltage | 56VAC | 56VAC | 56VAC | 115VAC | 115VAC |
| Rated Current | 9A | 12A | 17.9A | 10A | 17.4A |
| Efficiency | >85% | ||||
| Wending Method | Y | ||||
| Insulating Resistance | 100Mohm Min(500V DC) | ||||
| Leakage Level | <5 ma | ||||
| Start Torque | <0.1N/M | <0.3 N/M | <0.3 N/M | <0.5 N/M | <0.3 N/M |
| Phase Type | 3 Phase | ||||
| Structure | Out rotor | ||||
| Stator | Coreless wire coil | ||||
| Rotor | Rare Earth Permanent Magnet | ||||
| Generator Shell Diameter | 320 | 380 | 380 | 550 | 450 |
| Generator Shell Length | 232 | 241 | 241 | 330 | 258 |
| Weight | 20 | 32 | 32 | 75 | 51 |
| Shaft drameter | 45 | 50 | 50 | 78 | 59 |
| Generator shell material | Aluminum alloy | ||||
| Shaft material | Carbon steel | ||||
| Bearing | Deep groove ball bearing | ||||
| Model | GDG-3KW-100 | GDG-3KW-180 | GDG-5KW-100 | GDG-5KW-150 | GDG-10KW-100 |
| Rated Power | 3KW | 3KW | 5KW | 6KW | 10KW |
| Rated Rotate Speed | 100RPM | 180RPM | 100RPM | 150RPM | 100RPM |
| Rated Voltage | 380VAC | 380VAC | 380VAC | 380VAC | 400VAC |
| Rated Current | 4.6 | 4.7 | 7.6 | 15.2 | 14.5 |
| Efficiency | >85% | >85% | >88% | >88% | >88% |
| Wending Method | Y | Y | Y | Y | Y |
| Insulating Resistance | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(501V DC) |
| Leakage Level | <5 ma | <5 ma | <5 ma | <5 ma | <5 ma |
| Start Torque | <1 N/M | <0.5 N/M | <0.5 N/M | <1 N/M | <1N/M |
| Phase Type | 3 Phase | 3 Phase | 3 Phase | 3 Phase | 3 Phase |
| Structure | Out rotor | Out rotor | Out rotor | Out rotor | Out rotor |
| Stator | Coreless wire coil | Coreless wire coil | Coreless wire coil | Coreless wire coil | Coreless wire coil |
| Rotor | Rare Earth Permanent Magnet | Rare Earth Permanent Magnet | Rare Earth Permanent Magnet | Rare Earth Permanent Magnet | Rare Earth Permanent Magnet |
| Generator Shell Diameter | 620 | 550 | 700 | 620 | 770 |
| Generator Shell Length | 410 | 330 | 400 | 410 | 590 |
| Weight | 110 | 65 | 125 | 110 | 245 |
| Shaft drameter | 80 | 78 | 98 | 80 | 85 |
| Generator shell material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Shaft material | Carbon steel | Carbon steel | Carbon steel | Carbon steel | Carbon steel |
| Bearing | SKF Deep groove ball bearing | SKF Deep groove ball bearing | SKF Deep groove ball bearing | SKF Deep groove ball bearing | SKF Deep groove ball bearing |
Magnetic Generator Power Curve
ON-LOAD Power Curve
If you need the datasheets specification of other model generator, please send the inquiry with your interested model (GDG or GDI series), we will send the details specification to you ASAP.
