High Efficiency Disc Coreless Permanent Magnet Generator 100RPM 200RPM

High Efficiency Disc Coreless Permanent Magnet Generator 100RPM 200RPM

Disc Permanent Magnet Generator

100RPM Coreless Permanent Magnet Generator

Coreless Magnet Motor Generator

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
Product Details
Type:
Wind Power Generator,wind Turbine Permanent Magnet
Generator Type:
Permanent Magnent Generator
Application:
Wind Hybrid System,Wind/Water Turbine,Wind Power System,HAWT
Frequency:
50HZ
Rated Rotor Speed:
100rpm 180rpm
Shaft Type:
Vertical/horizontal
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$299-12999c
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAY
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Product Description

GDG Coreless Disc Permanent Magnet Generator Manufacturer

Magnetic Generator Product Description



GreeF company supply modified kinds of Coreless Disk Permanent Magnet Generator. The main models are as follow:

  • GDG-0.2KW 200RPM
  • GDG-0.5KW 200RPM
  • GDG-1KW 150RPM
  • GDG-1KW 180RPM
  • GDG-2KW 120RPM
  • GDG-2KW 180RPM
  • GDG-3KW 100RPM
  • GDG-3KW 180RPM
  • GDG-5KW 100RPM
  • GDG-5KW 150RPM
  • GDG-10KW 100RPM
  • GDG-10KW 150RPM
The magnetic generators are always being used in vertical axis wind turbine generator, diesel gasoline generator ,hydroelectric generator(water-power generator) and other generator system which requests very low start torque and low RPM.





Magnetic Generator Overview



The coreless disk permanent magenetic generator is made of high-stability Nd-Fe-B materials.



The specific outer rotor magnetic circuit is designed in a special way. The magnetic generator



has following features:



Low starting torque, Low start wind speed, Low weight,small size ,High generating efficiency





Magnetic Generator Features



  • Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M
  • Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
  • Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
  • Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
  • Gearless, direct drive, low RPM generator.
  • High standard, quality components for use in harsh and extreme environments for wind turbines
  • High efficiency and Low mechanical resistance energy loss.
  • Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.



Magnetic Generator Technical Data



Model GDG-0.5KW-200 GDG-1KW-180 GDG-1KW-200 GDG-2KW-120 GDG-2KW-180
Rated Power 0.5KW 1KW 1KW 2KW 2KW
Rated Rotate Speed 200 RPM 180RPM 200RPM 120RPM 180RPM
Rated Voltage 56Vac 56Vac 56Vac 115Vac 115Vac
Rated Current 9A 12A 17.9A 10A 17.4A
Efficiency >85%
Wending Method Y
Insulating Resistance 100Mohm Min(500V DC)
Leakage Level <5 ma
Start Torque <0.1N/M <0.3 N/M <0.3 N/M <0.5 N/M <0.3 N/M
Phase Type 3 Phase
Structure Out rotor
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator Shell Diameter 320 380 380 550 450
Generator Shell Length 232 241 241 330 258
Weight 20 32 32 75 51
Shaft drameter 45 50 50 78 59
Generator shell material Aluminum alloy
Shaft material Carbon steel
Bearing Deep groove ball bearing





Currently we offer wide range:



------ 300W-100kw FRP wind turbine blades

------ Horizontal Axis Wind Turbine generator (HAWT)

------ Vertical Axis Wind Turbine generator (VAWT)

------ Solar and wind hybrid system

------ Solar panel

------ Permanent Magnent Generator

------ Controllers, invertor, battery and relation products

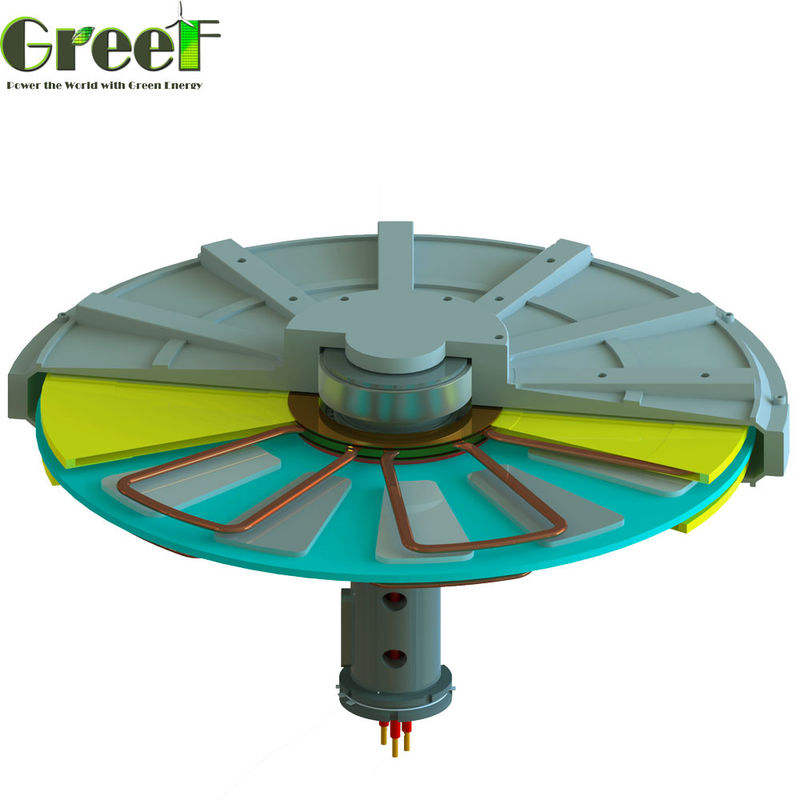

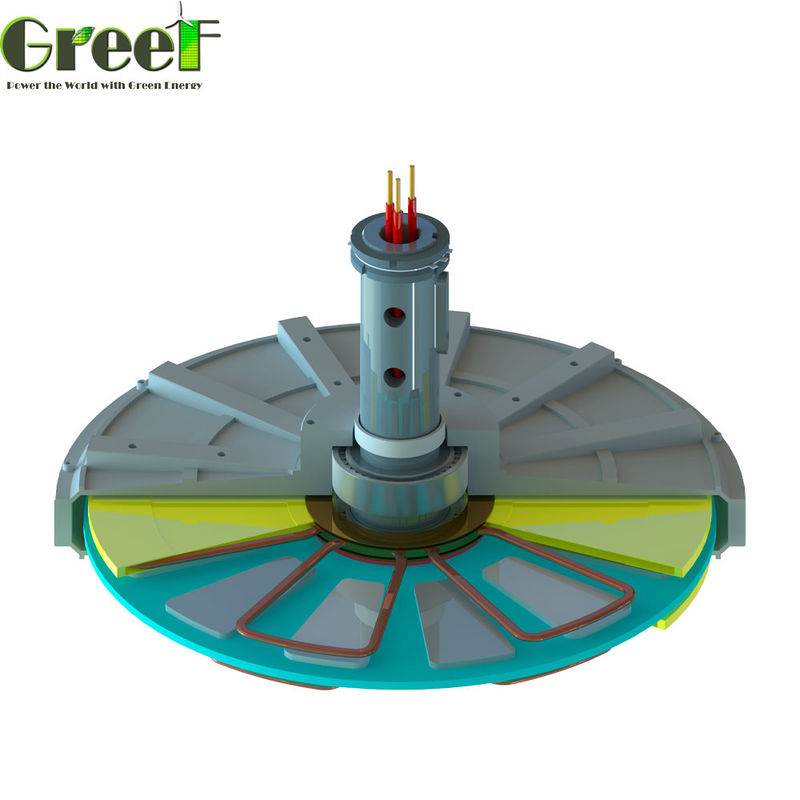

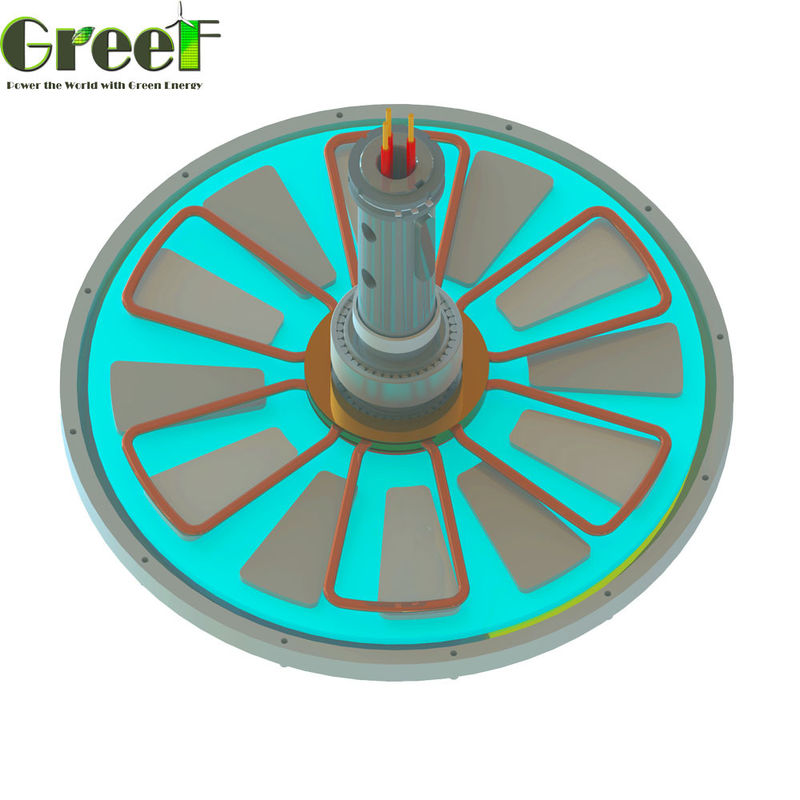

Magnetic Generator Drawing Sample




GDG Coreless disc Permanent magnet generator manufacturer

GDG Coreless disc Permanent magnet generator manufacturer

GDG Coreless disc Permanent magnet generator manufacturer

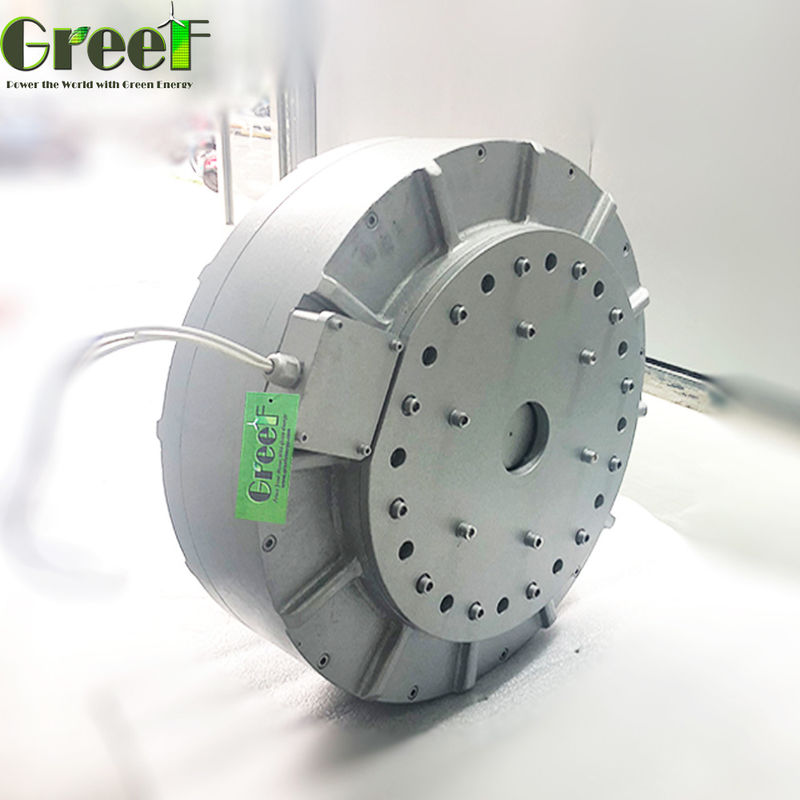

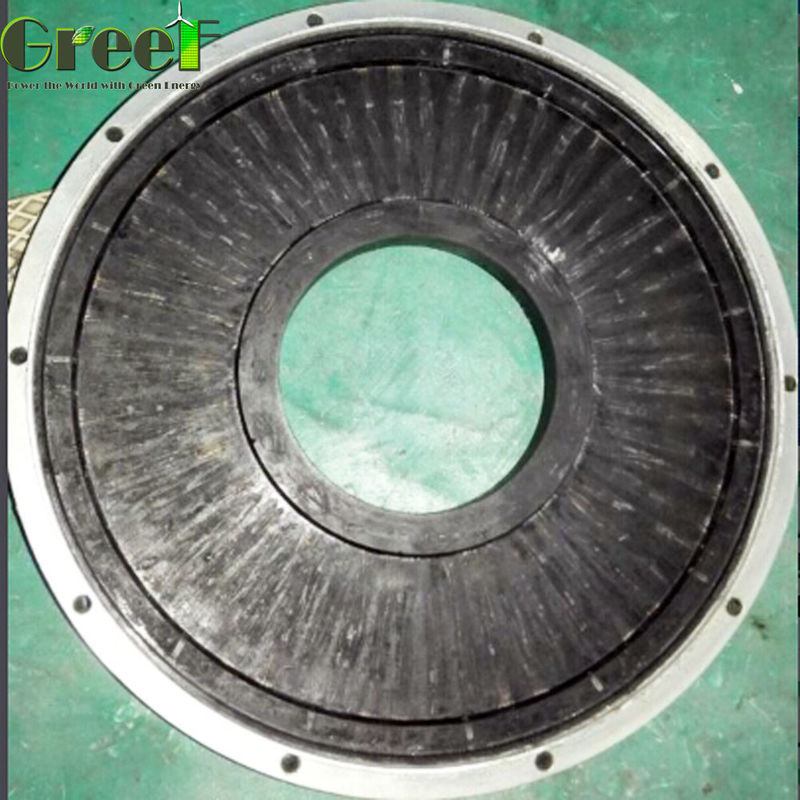

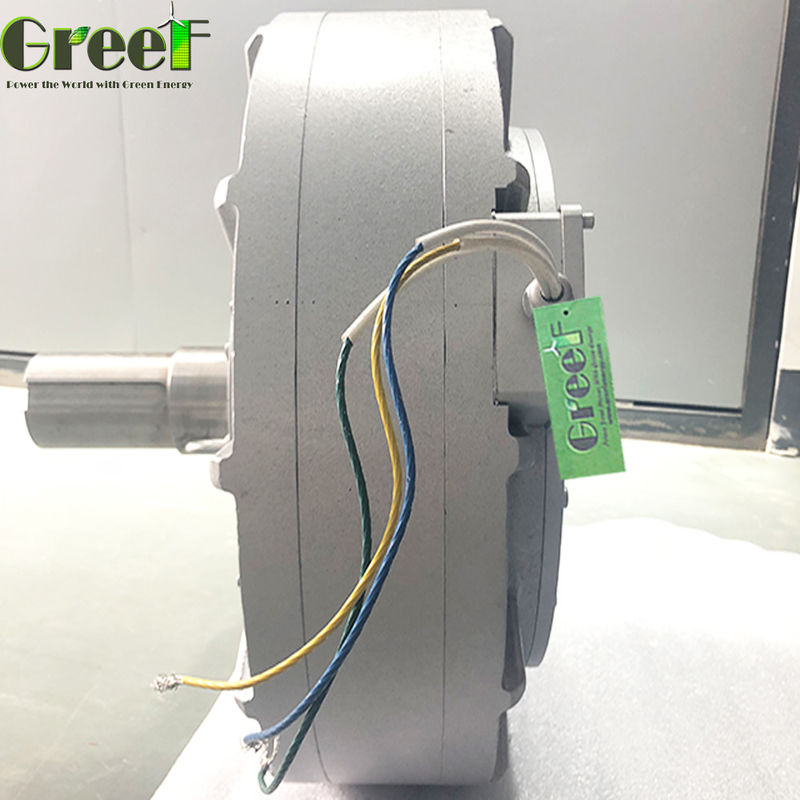

Magnetic Generator Pictures

GDG Coreless disc Permanent magnet generator manufacturer

GDG Coreless disc Permanent magnet generator manufacturer


Magnetic Generator Packaging & Shipping

1. The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

2.Pakage size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.

GDG Coreless disc Permanent magnet generator manufacturer






Our Services

OEM service



Our magnetic generator is free 3 years warranty, All lifelong technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
