1kw 2kw 3kw 5kw 10kw Low rpm permanent magnet generator Low Torque

Name: 1kw 2kw 3kw 5kw 10kw Low rpm permanent magnet generator Low Torque
Brand: GREEF
SKU: GDF
Price: 299 USD
Availability: InStock
Rating: 4.7 (193 reviews)

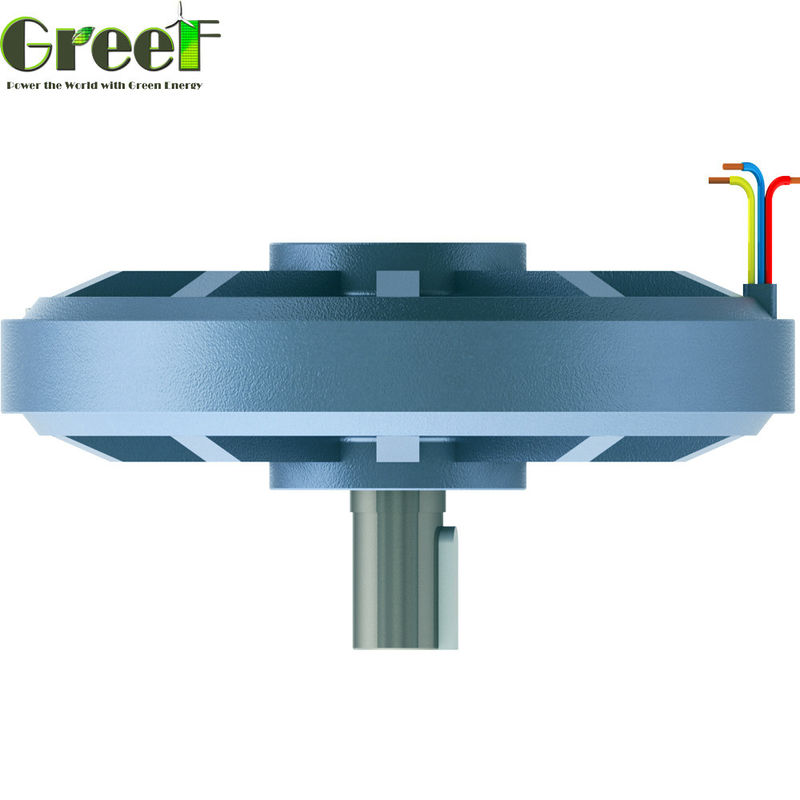

Large Image : 1kw 2kw 3kw 5kw 10kw Low rpm permanent magnet generator Low Torque

Product Details:

Place of Origin:	QINGDAO
Brand Name:	GREEF
Certification:	CE
Model Number:	GDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$299-12999
Packaging Details:	Inner Foam + Plywooden case
Delivery Time:	25DAY
Payment Terms:	L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15

Contact Now

Detailed Product Description

Type:	Wind Power Generator	Rated Power:	300w-30kw
Rated Voltage:	220V / 240V / 360V / 380V	Generator Type:	3 Phase AC Permanent-magnet
Application:	Wind Hybrid System	Blade Material:	Aluminium Alloy
Warranty:	3 Years	Frequency:	50hz/60hz
Rated Rotor Speed:	20-900RPM	Rated Speed:	125rpm
Product Name:	Magnet Generators For Sale	Start-up Wind Speed:	1.8-2.5m/s
Generator Material:	100% Copper Wire+Nd-Fe-B	Shaft Type:	Horizontal And Vertical
High Light:	10kw Low Rpm Permanent Magnet Generator , 1kw Low Rpm Permanent Magnet Generator , 2kw low rpm permanent magnet alternator

10KW 100 RPM Horizontal Axis Coreless Permanent Magnet Generator

Coeless Permanent Magnet Generator

This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.

1	Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.3N.M
2	Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3	Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4	Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5	Gearless, direct drive, low RPM generator.
6	High standard, quality components for use in harsh and extreme environments for wind turbines
7	High efficiency and Low mechanical resistance energy loss
8	Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.

Product Description

Model	GDG-0.5KW-200	GDG-1KW-180	GDG-1KW-200	GDG-2KW-120	GDG-2KW-180
Rated Power	0.5KW	1KW	1KW	2KW	2KW
Rated Rotate Speed	200 RPM	180RPM	200RPM	120RPM	180RPM
Rated Voltage	56Vac	56Vac	56Vac	115Vac	115Vac
Rated Current	9A	12A	17.9A	10A	17.4A
Efficiency	>85%
Wending Method	Y
Insulating Resistance	100Mohm Min(500V DC)
Leakage Level	<5 ma
Start Torque	<0.1N/M	<0.3 N/M		<0.5 N/M	<0.3 N/M
Phase Type	3 Phase
Structure	Out rotor
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator Shell Diameter	320	380		550	450
Generator Shell Length	232	241	241	330	258
Weight	20	32	32	75	51
Shaft drameter	45	50	50	78	59
Generator shell material	Aluminum alloy
Shaft material	Carbon steel
Bearing	Deep groove ball bearing

Model	GDG-3KW-100	GDG-3KW-180	GDG-5KW-100	GDG-5KW-150	GDG-10KW-100
Rated Power	3KW	3KW	5KW	6KW	10KW
Rated Rotate Speed	100RPM	180RPM	100RPM	150RPM	100RPM
Rated Voltage	380VAC	380VAC	380VAC	380VAC	400VAC
Rated Current	4.6A	4.7A	7.6A	15.2A	14.5A
Efficiency	>85%
Wending Method	Y
Insulating Resistance	100Mohm Min(500V DC)
Leakage Level	<5 ma
Start Torque	<1 N/M	<0.5 N/M		<1 N/M
Phase Type	3 Phase
Structure	Out rotor
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator Shell Diameter	620	550	700	620	770
Generator Shell Length	410	330	400	410	590
Weight	110	65	125	110	245
Shaft drameter	80	78	98	80	85
Generator shell material	Aluminum alloy
Shaft material	Carbon steel
Bearing	Deep groove ball bearing

System Solution

We can provide the complete generator system including Controller and Inverter:

Packaging & Shipping

The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

Pakage size and weight please refer to our sales.

Shipping by sea with FCL LCL or by air .If you have any request in package and shipping please tell our sales we will do according to your request.

Why Choose Us

Our magnetic generator is free 3 years warranty, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.

(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.

(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
