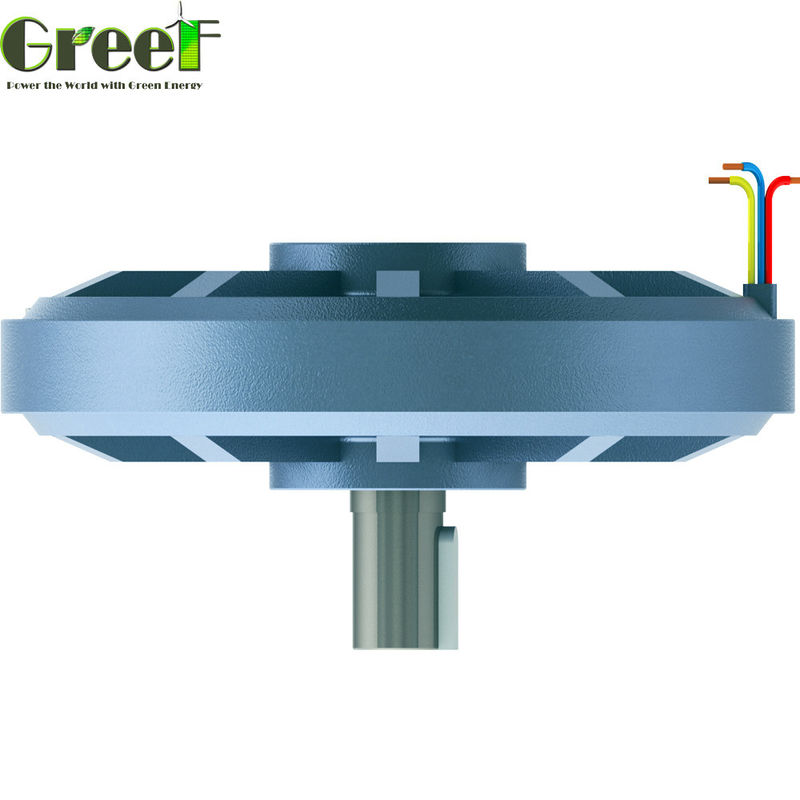

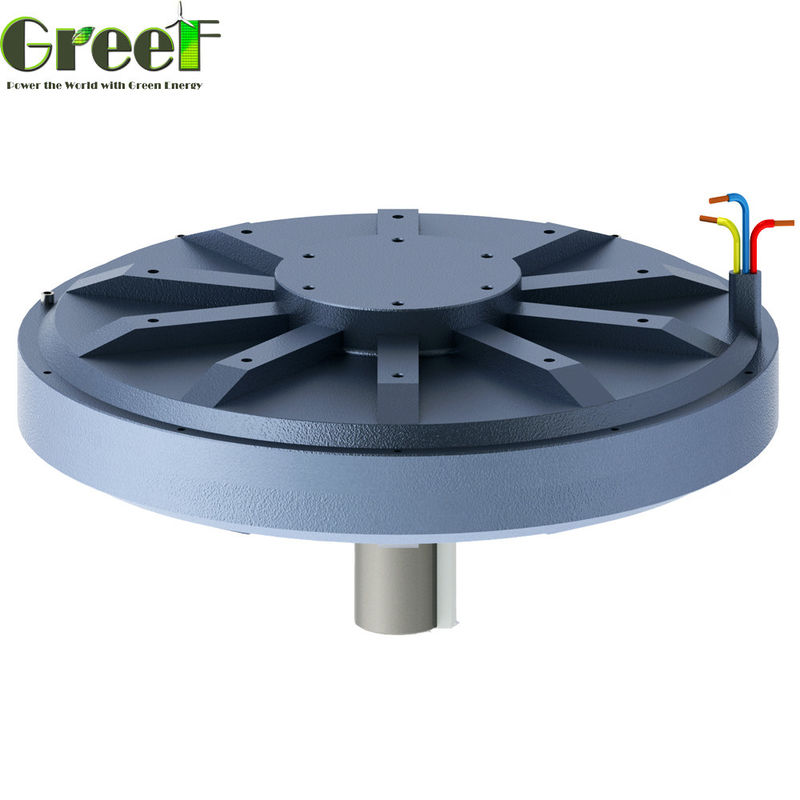

2KW Coreless Permanent Magnet Generator 180rpm For VAWT

2KW Coreless Permanent Magnet Generator 180rpm For VAWT

Coreless Permanent Magnet Generator 2KW

Coreless Permanent Magnet Generator 180rpm

VAWT Coreless Permanent Magnet Generator

Place of Origin:

Qingdao

Brand Name:

GREEF

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
Product Details
Type:
Wind Turbine Permanent Magnet
Rated Voltage:
12/24V,220V / 240V / 360V / 380V
Generator Type:
3 Phase AC Permanent-magnet
Warranty:
2 Years
Rated Rotor Speed:
20-900RPM,100rpm 180rpm,350RPM
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
3week
Payment Terms
L/C, Western Union, MoneyGram
Supply Ability
5
Product Description
2KW Coreless Permanent Magnet Generator 180rpm For VAWT


Product Description
Advantages


GREEF DDG series generator have following features:

Low rated rotate speed, Low start wind speed, Low weight and small size, low High efficiency

(1) Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M

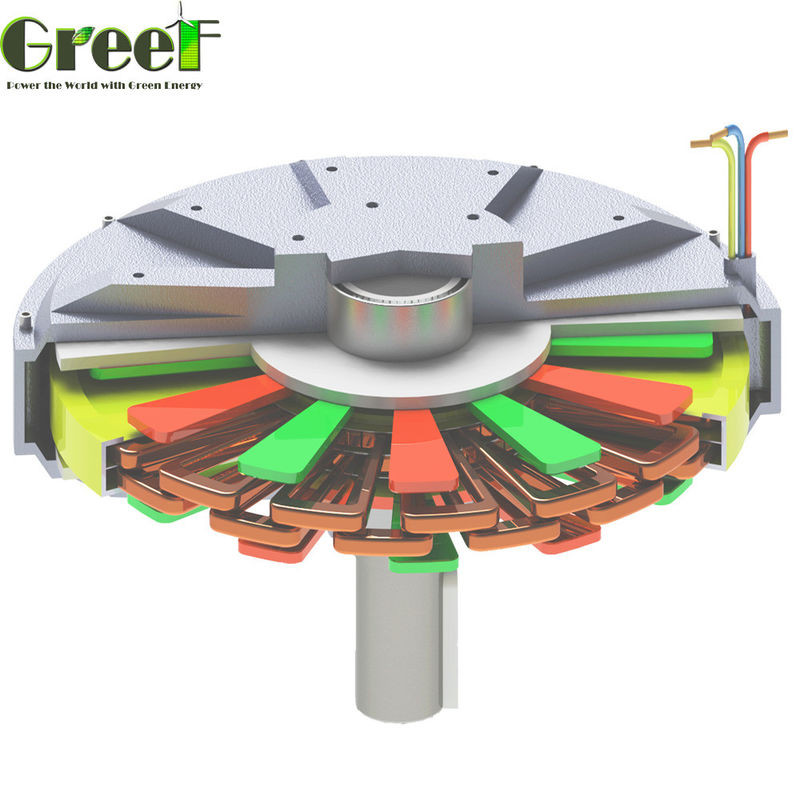

(2) Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.

(3) Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.

(4) Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.

(5) Gearless, direct drive, low RPM generator.

(6) High standard, quality components for use in harsh and extreme environments for wind turbines

(7) High efficiency and Low mechanical resistance energy loss

(8) Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.


Product Description
Model
GDG-0.5KW-200
GDG-1KW-180
GDG-1KW-200
GDG-2KW-120
GDG-2KW-180
Rated Power
0.5KW
1KW
1KW
2KW
2KW
Rated Rotate Speed
200 RPM
180RPM
200RPM
120RPM
180RPM
Rated Voltage
56Vac
56Vac
56Vac
115Vac
115Vac
Rated Current
9A
12A
17.9A
10A
17.4A
Efficiency
>85%
Wending Method
Y
Insulating Resistance
100Mohm Min(500V DC)
Leakage Level
<5 ma
Start Torque
<0.1N/M
<0.3 N/M
<0.5 N/M
<0.3 N/M
Phase Type
3 Phase
Structure
Out rotor
Stator
Coreless wire coil
Rotor
Rare Earth Permanent Magnet
Generator Shell Diameter
320
380
550
450
Generator Shell Length
232
241
241
330
258
Weight
20
32
32
75
51
Shaft drameter
45
50
50
78
59
Generator shell material
Aluminum alloy
Shaft material
Carbon steel
Bearing
Deep groove ball bearing
Model
GDG-3KW-100
GDG-3KW-180
GDG-5KW-100
GDG-5KW-150
GDG-10KW-100
Rated Power
3KW
3KW
5KW
6KW
10KW
Rated Rotate Speed
100RPM
180RPM
100RPM
150RPM
100RPM
Rated Voltage
380VAC
380VAC
380VAC
380VAC
400VAC
Rated Current
4.6A
4.7A
7.6A
15.2A
14.5A
Efficiency
>85%
Wending Method
Y
Insulating Resistance
100Mohm Min(500V DC)
Leakage Level
<5 ma
Start Torque
<1 N/M
<0.5 N/M
<1 N/M
Phase Type
3 Phase
Structure
Out rotor
Stator
Coreless wire coil
Rotor
Rare Earth Permanent Magnet
Generator Shell Diameter
620
550
700
620
770
Generator Shell Length
410
330
400
410
590
Weight
110
65
125
110
245
Shaft drameter
80
78
98
80
85
Generator shell material
Aluminum alloy
Shaft material
Carbon steel
Bearing
Deep groove ball bearing
2KW Coreless Permanent Magnet Generator 180rpm For VAWT 0
2KW Coreless Permanent Magnet Generator 180rpm For VAWT 1
System Solution
We can provide the complete generator system including Controller and Inverter:
2KW Coreless Permanent Magnet Generator 180rpm For VAWT 2
2KW Coreless Permanent Magnet Generator 180rpm For VAWT 3

Packaging & Shipping

1. Generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.
2. Pakage size and weight please refer to our sales.
3. Shipping  by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.






Our Services

 OEM service

Generators are free 3 years warranty, All lifelong  technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.






FAQ


 1.  Q:  Does installation Easy ?
      A:    Very easy, every customer can doin by themselves, we will supply all the components for installation and very details installation manual.

2.Q: Which model is suitable for me?
    A: Please contact our sales with following points :
        1. What appliance do you want to running by the system?  How many watts are they and their working time .
        2. Your annual wind speed .
        3. What kinds of system do you want ? On-grid or  off-grid

3.Q: Can I only buy parts not whole system?
    A: Yes,for example you can manufacture tower in local , we can supply you tower drawing .

Any other questions, please feel free to contact us.
