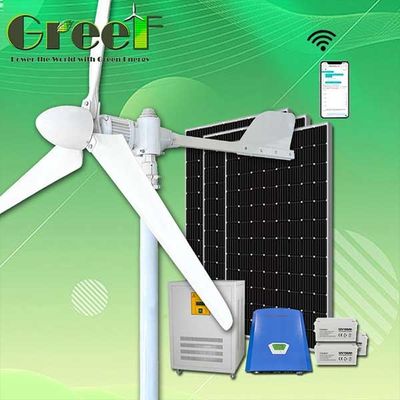

3 Phase AC Horizontal Wind Turbine Home Wind Solar Hybrid System 1KW 3KW 5KW 10KW

3 Phase AC Horizontal Wind Turbine Home Wind Solar Hybrid System 1KW 3KW 5KW 10KW

10KW AC Horizontal Wind Turbine

3Phase Horizontal Wind Turbine

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CE

Model Number:

GH-1KW/2KW/3KW/5KW/10KW

Contact Us
Request A Quote
Product Details
Type:
Wind Power Generator
Rated Power:
600W,300w-30kw,3000W,15kW
Rated Voltage:
12V / 24V / 48V,400V 600V 800V 11KV 13.8KV,24/48V
Generator Type:
3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine
Application:
HAWT
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
$299-12999
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAYS
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
25
Product Description

1KW 2KW 3KW 5KW 10KW 3 Phase AC Horizontal Axis Wind Turbine Home Use Wind Solar Hybrid System

Horizontal Wind Turbine Catalogue

Model: 5KW Horizontal axis wind turbine |Off-grid system | Folding tower

Overview

GREEF GH-5KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-5KW wind generator is pollution free and far away from noise. The GH-5KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-5KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.



Recommended for:

· Household,Garden,Farm,Urban ,Rooftop

· Telecom sites.

· Rural electrification programs. Island , sentry, island, sight lighting

· Automatic speed reduction protection



Technical specification

Model GH-5KW
Performance
Rated Power 5000W
Max Power 7500W
Start Wind Speed 3m/s(6.72mph)
Rated Wind Speed 10m/s(22.4mph)
Working Wind Speed 4-25m/s(8.96-56 mph)
Safety Wind Speed 50m/s(112mph)
Physical Parameters
Blades Rotor Diameter 5.4M(17.7ft)
Blades Material &Quantity FRP /3PCS
Top Weight 180kg
Tower Height 8m(26.24ft.) Free folding tower
Generator Parameters
Generator Type Permanent Magnet Generator
Rated Speed 240RPM
Option Voltage 24-220VAC
Protection Method Electromagnetic Brake +PWM
Protection Grade IP54
Working Temperature -40-50



5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

Dimension

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

Power Curve

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

Annual Energy Production

This data will have ±10% difference according to real condition.

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

Automatic Speed Reduction Protection

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

Pictures

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator



5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator



5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

Why Choose GREEF ?

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

1. Q: How your permanent magnet generator work?

A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating power.



2. Q: Can your magnetic generator produce al power by itself?

A: No, please refer A1.


3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.


4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.


5. Q: Can you manufacture customized product?
A: Yes, we can.

Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.


6. Q: Can your company provide OEM service?
A: Yes, we can.



If you have other questions or requirements, please contact us directly!
