Place of Origin:
QINGDAO
Brand Name:
GREEF
Certification:
CE
Model Number:
GH-5KW
Horizontal Wind Turbine Catalogue

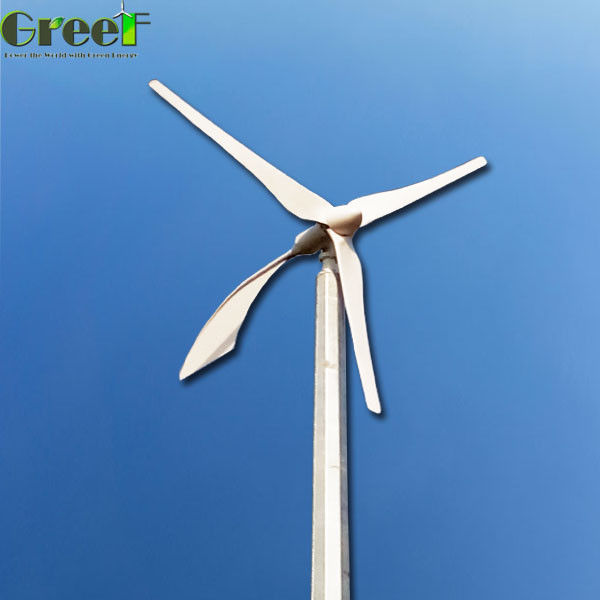

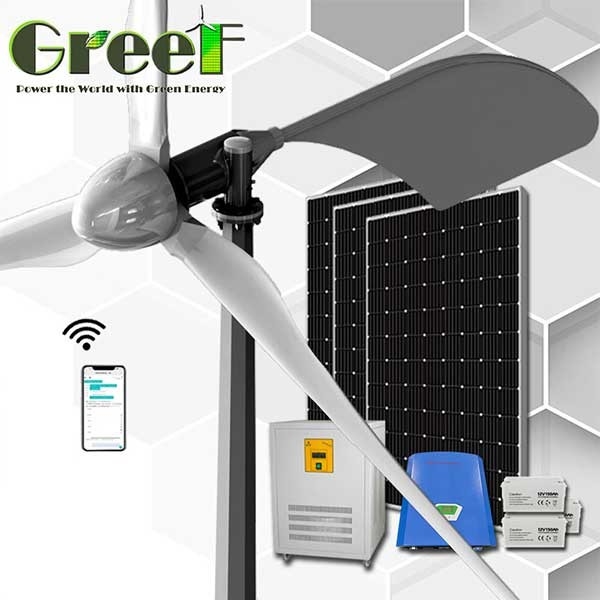

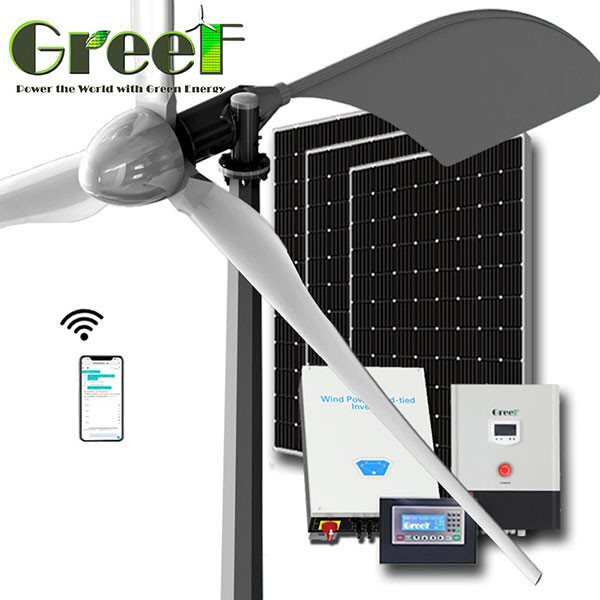

Model:5KW Manufacturer Complete Horizontal Axis Wind Turbine Complete Hybrid Off And On Grid System
Overview
GREEF GH-5KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-5KW wind generator is pollution free and far away from noise. The GH-5KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-5KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
| Model | GH-5KW |
| Performance | |
| Rated Power | 5000W |
| Max Power | 7500W |
| Start Wind Speed | 3m/s(6.72mph) |
| Rated Wind Speed | 10m/s(22.4mph) |
| Working Wind Speed | 4-25m/s(8.96-56 mph) |
| Safety Wind Speed | 50m/s(112mph) |
| Physical Parameters | |
| Blades Rotor Diameter | 5.4M(17.7ft) |
| Blades Material &Quantity | FRP /3PCS |
| Top Weight | 180kg |
| Tower Height | 8m(26.24ft.) Free folding tower |
| Generator Parameters | |
| Generator Type | Permanent Magnet Generator |
| Rated Speed | 240RPM |
| Option Voltage | 24-220VAC |
| Protection Method | Electromagnetic Brake +PWM |
| Protection Grade | IP54 |
| Working Temperature | -40-50℃ |
Dimension
Power Curve
Annual Energy Production
This data will have ±10% difference according to real condition.
Automatic Speed Reduction Protection

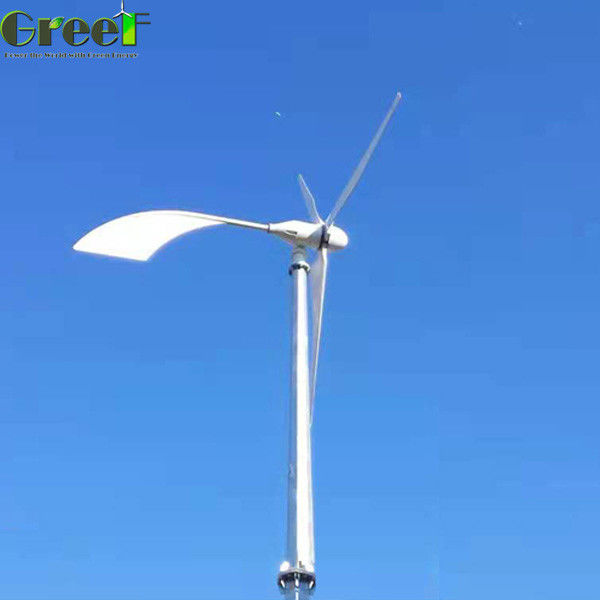

Pictures
Why Choose GREEF ?
1. Q: How your permanent magnet generator work?
A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating power.
2. Q: Can your magnetic generator produce al power by itself?
A: No, please refer A1.
3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.
4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.
5. Q: Can you manufacture customized product?
A: Yes, we can.
Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.
6. Q: Can your company provide OEM service?
A: Yes, we can.
If you have other questions or requirements, please contact us directly!
