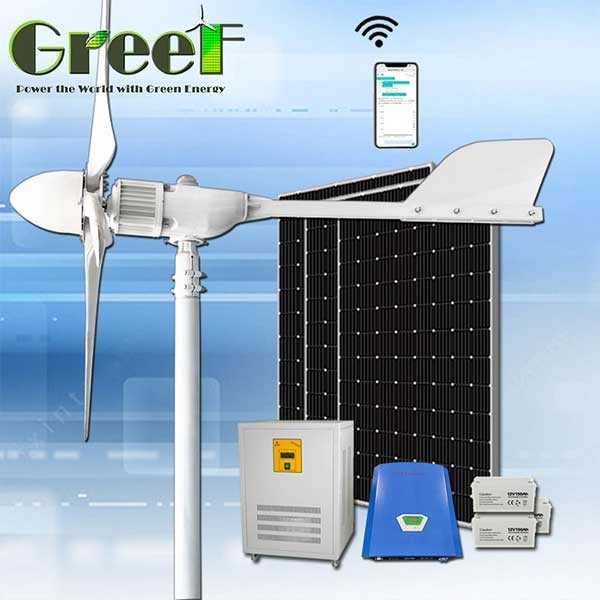

3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System

3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System

3KW Hybrid Solar Wind Turbine

IP54 Hybrid Solar Wind Turbine

FRP Horizontal Wind Turbine

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CE

Model Number:

GH-3KW

Contact Us
Request A Quote
Product Details
Max Power:
4000W
Rated Power:
3000W
Protection Grade:
IP54
Blades Length:
1.9M(6.23ft)
Blades Material &Quantity:
FRP /3PCS
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
$299-12999
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAYS
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
25
Product Description

Horizontal Wind Turbine Catalogue

3KW High-power Electric On Grid Hybrid Solar Wind Turbine Generator System

Overview

GREEF GH-3KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-3KW wind generator is pollution free and far away from noise. The GH-3KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-3KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.



3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System 0
Technical specification
Model GH-3KW
Performance
Rated Power 3000W
Max Power 4000W
Start Wind Speed 3m/s(6.72mph)
Rated Wind Speed 10m/s(22.4mph)
Working Wind Speed 4-25m/s (8.96-56 mph)
Safety Wind Speed 50m/s(112mph)
Physical Parameters
Blades Length 1.9M(6.23ft)
Blades Rotor Diameter 4M(13.12ft)
Blades Material &Quantity FRP /3PCS
Top Weight 150kg
Swept Area 8.04m
Tower Height 8m(26.24ft.) Free folding tower
Generator Parameters
Generator Type Permanent Magnet Generator
Rated Speed 350RPM
Start Torque 2.5N.M
Option Voltage 48-240VAC
Protection Method Electromagnetic Brake +PWM
Protection Grade IP54
Working Temperature -40-50
Life time 20 Years



Dimension

3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System 1



Power Curve

3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System 2



Annual Energy Production



3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System 3

This data will have ±10% difference according to real condition.

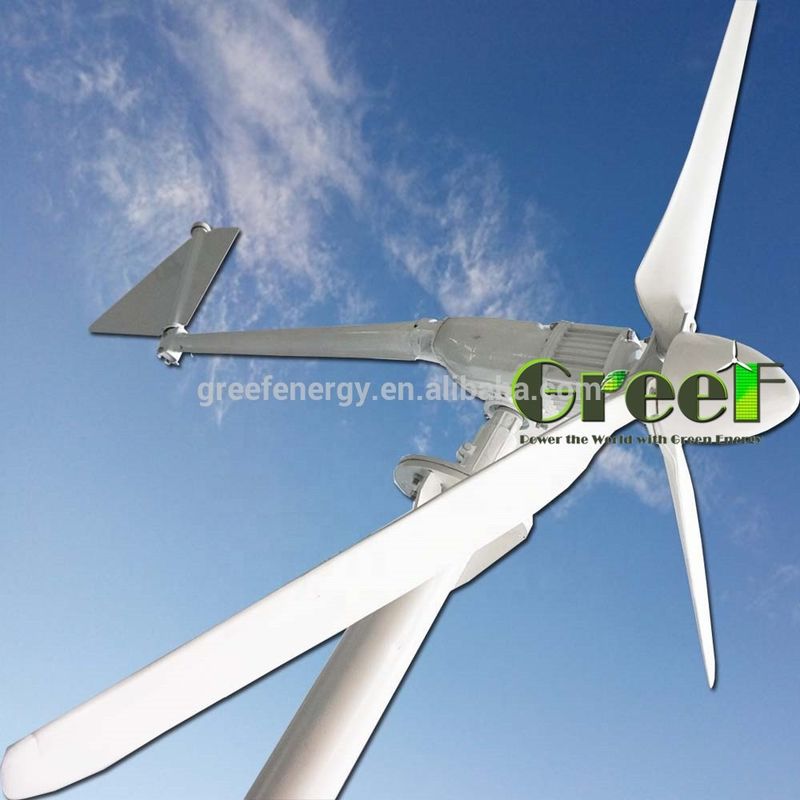

Pictures

3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System 4



Accesses Details Pictures

3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System 5





If you have any request in package and shipping please tell our sales we will do according to your request.

Hot sale!! high efficiency easy installation 3kw wind turbine generator for home use

System Design Service

We can design different system for customers according their request For example, on-grid or off-grid system , solar wind hybrid system or solar wind diesel generator system like below

3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System 7 3KW High Power Electric On Grid Hybrid Solar Wind Turbine Generator System 8 Hot sale!! high efficiency easy installation 3kw wind turbine generator for home use

FAQ

1. Q: Does wind mill 3kw installation Easy ?

A: Very easy, every customer can doing by themselves, we will supply all the components for installation and very detailed installation manual.

2. Q: Does our wind is enough for wind mill 3kw ?

A: As our wind mill 3kw can start running at low wind speed 3m/s. so your average annual wind speed is more than 10m/s then you can use it .

3.Q:Which model wind generator is suitable for me?

A: 1. What appliance do you want to running by the system? How many watts are they and their working time .

2. Your annual wind speed .

4.Q:Can I only buy parts not whole system?

A: Yes,for example you can manufacture tower in local , we can supply you tower drawing .



Hot sale!! high efficiency easy installation 3kw wind turbine generator for home use
