Place of Origin:
QINGDAO
Brand Name:
GREEF
Certification:
CE
Model Number:
GH-5KW
Horizontal Wind Turbine Catalogue

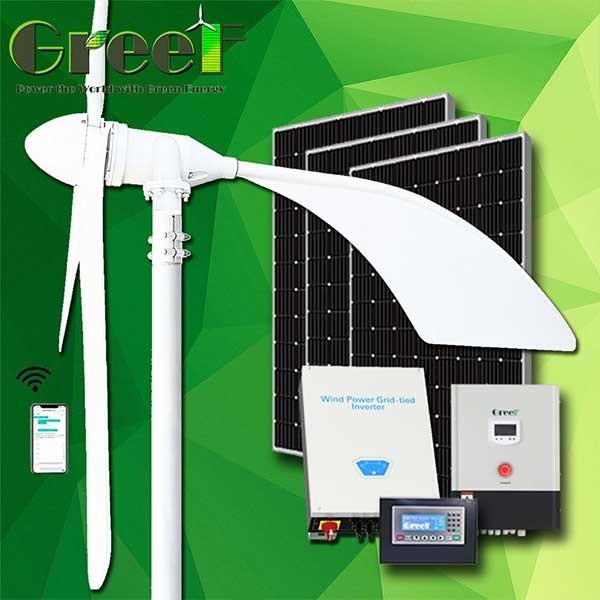

Model:5KW Alternative Energy Electric On Grid Hybrid Solar Wind Turbine Generator System
Overview
GREEF GH-5KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-5KW wind generator is pollution free and far away from noise. The GH-5KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-5KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model | GH-5KW |
Performance | |
Rated Power | 5000W |
Max Power | 7500W |
Start Wind Speed | 3m/s(6.72mph) |
Rated Wind Speed | 10m/s(22.4mph) |
Working Wind Speed | 4-25m/s(8.96-56 mph) |
Safety Wind Speed | 50m/s(112mph) |
Physical Parameters | |
Blades Rotor Diameter | 5.4M(17.7ft) |
Blades Material &Quantity | FRP /3PCS |
Top Weight | 180kg |
Tower Height | 8m(26.24ft.) Free folding tower |
Generator Parameters | |
Generator Type | Permanent Magnet Generator |
Rated Speed | 250RPM |
Option Voltage | 24-220VAC |
Protection Method | Electromagnetic Brake +PWM |
Protection Grade | IP54 |
Working Temperature | -40-50℃ |
Dimension
Power Curve
Annual Energy Production
This data will have ±10% difference according to real condition.
Automatic Speed Reduction Protection

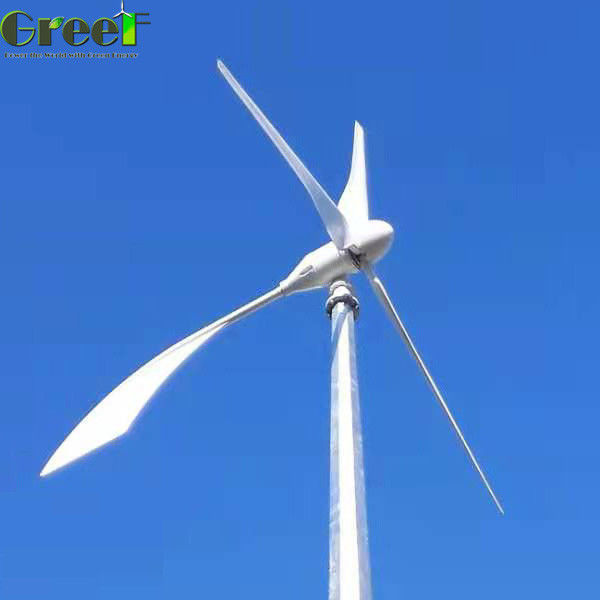

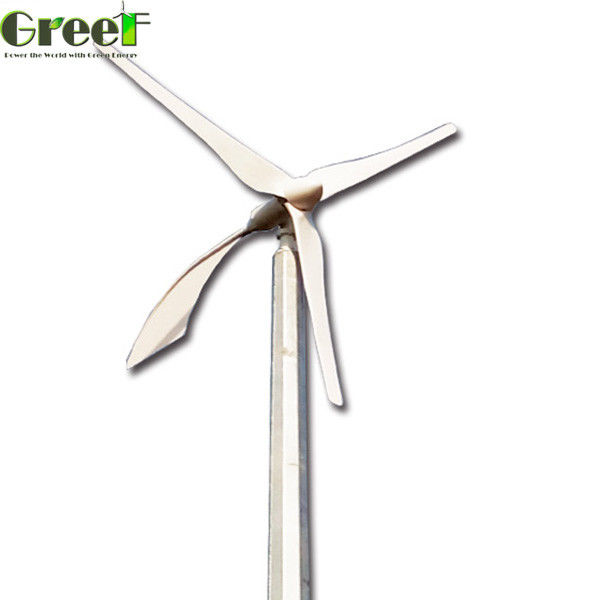

Pictures
Why Choose GREEF ?
1. Q: How your permanent magnet generator work?
A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating power.
2. Q: Can your magnetic generator produce al power by itself?
A: No, please refer A1.
3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.
4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.
5. Q: Can you manufacture customized product?
A: Yes, we can.
Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.
6. Q: Can your company provide OEM service?
A: Yes, we can.
If you have other questions or requirements, please contact us directly!
