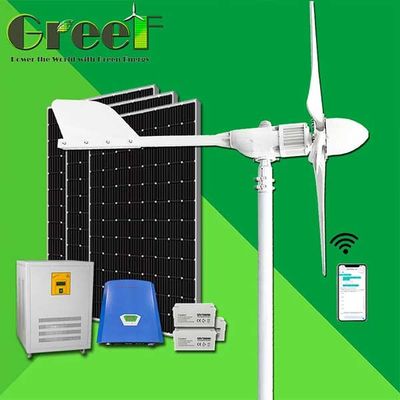

Single / Three Phase Solar Hybrid Eolic Grid Tied Wind Generator 2KW

Single / Three Phase Solar Hybrid Eolic Grid Tied Wind Generator 2KW

Eolic Grid Tied Wind Generator

Grid Tied Wind Generator 2KW

Single Phase Eolic Wind Generator

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CE

Model Number:

GH-2KW

Contact Us
Request A Quote
Product Details
Model:
2KW
Rated Power:
2000W
Start Wind Speed:
3m/s(6.72mph)
Rated Speed:
400RPM
Top Weight:
68KG
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
$299-12999
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAYS
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
25
Product Description

2KW Single/Three Phase Grid Tied Solar Wind Hybrid System Eolic Wind Generator

Horizontal Wind Turbine Catalogue

Model: 2KW Horizontal axis wind turbine |Off-grid system | Folding tower

Overview

GREEF GH-2KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-2KW wind generator is pollution free and far away from noise. The GH-2KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-2KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.



Recommended for:

· Household,Garden,Farm,Urban ,Rooftop

· Telecom sites.

· Rural electrification programs. Island , sentry, island, sight lighting

· Automatic speed reduction protection



Technical specification

Model GH-2KW
Performance
Rated Power 2000W
Max Power 3000W
Start Wind Speed 3m/s(6.72mph)
Rated Wind Speed 10m/s(22.4mph)
Working Wind Speed 3-25m/s(6.72-56 mph)
Safety Wind Speed 40m/s(89.6mph)
Physical Parameters
Blades Rotor Diameter 3.2M(10.50ft)
Blades Material &Quantity FRP /3PCS
Top Weight 68kg
Tower Height 6m(39.36ft.) Free folding tower
Generator Parameters
Generator Type Permanent Magnet Generator
Rated Speed 400RPM
Option Voltage 24-350VAC
Protection Method Electromagnetic Brake +PWM
Protection Grade IP54
Working Temperature -40-50



Single / Three Phase Solar Hybrid Eolic Grid Tied Wind Generator 2KW 0

Power Curve

Single / Three Phase Solar Hybrid Eolic Grid Tied Wind Generator 2KW 1

Annual Energy Production

This data will have ±10% difference according to real condition.

Single / Three Phase Solar Hybrid Eolic Grid Tied Wind Generator 2KW 2

Automatic Speed Reduction Protection

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

Pictures

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator



Single / Three Phase Solar Hybrid Eolic Grid Tied Wind Generator 2KW 5



Single / Three Phase Solar Hybrid Eolic Grid Tied Wind Generator 2KW 6

Why Choose GREEF ?

5kW horizontal axis wind turbine for home use easy installation , off grid on grid wind generator

1. Q: How your permanent magnet generator work?

A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating power.



2. Q: Can your magnetic generator produce al power by itself?

A: No, please refer A1.


3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.


4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.


5. Q: Can you manufacture customized product?
A: Yes, we can.

Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.


6. Q: Can your company provide OEM service?
A: Yes, we can.



If you have other questions or requirements, please contact us directly!
