|Rated Wind Speed:||10m/s(22.4mph)||Start Wind Speed:||3m/s(6.72mph)|

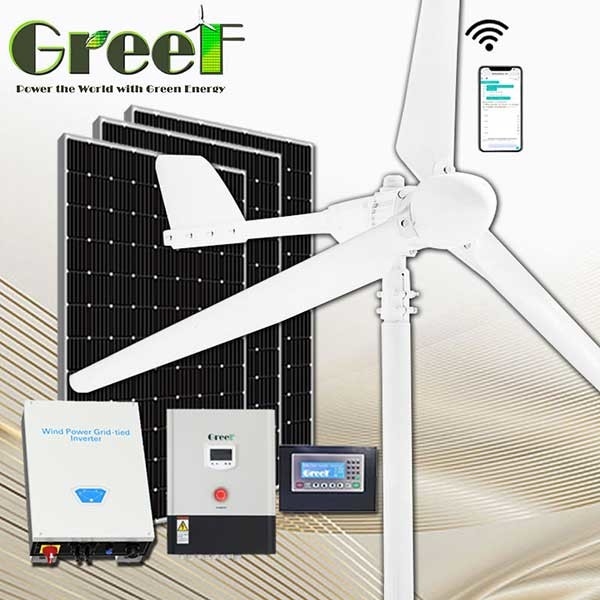

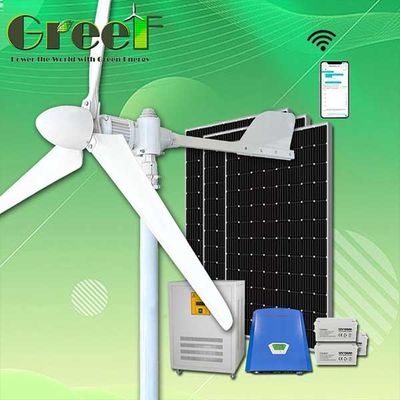

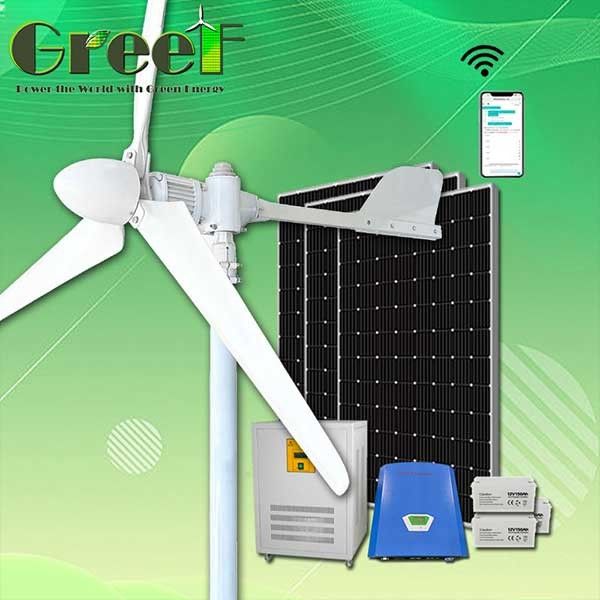

Off Grid Hybrid Wind Turbine,
Hybrid Wind Turbine 20KW
Horizontal Wind Turbine Catalogue
Model: 20KW Horizontal axis wind turbine |Off/On grid system
GREEF GH-20KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-20KW wind generator is pollution free and far away from noise. The GH-20KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-20KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
|Start Wind Speed||3m/s(6.72mph)|
|Rated Wind Speed||10m/s(22.4mph)|
|Working Wind Speed||4-25m/s(8.96-56 mph)|
|Safety Wind Speed||50m/s(112mph)|
|Blades Rotor Diameter||10M(32.8ft)|
|Blades Material &Quantity||FRP /3PCS|
|Tower Height||18m(59.04ft.) Free folding tower|
|Generator Type||Permanent Magnet Generator|
|Protection Method||Electromagnetic Brake +PWM|
Annual Energy Production
This data will have ±10% difference according to real condition.
Automatic Speed Reduction Protection
Why Choose GREEF ?
1. Q: How your permanent magnet generator work?
A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating power.
2. Q: Can your magnetic generator produce al power by itself?
A: No, please refer A1.
3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.
4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.
5. Q: Can you manufacture customized product?
A: Yes, we can.
Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.
6. Q: Can your company provide OEM service?
A: Yes, we can.
If you have other questions or requirements, please contact us directly!
