Brand Name:
Greef
Certification:
CE
Model Number:
GDG
Video
Conventional generators typically depend on substantial iron cores. These cores introduce magnetic resistance and result in energy losses within the core material.

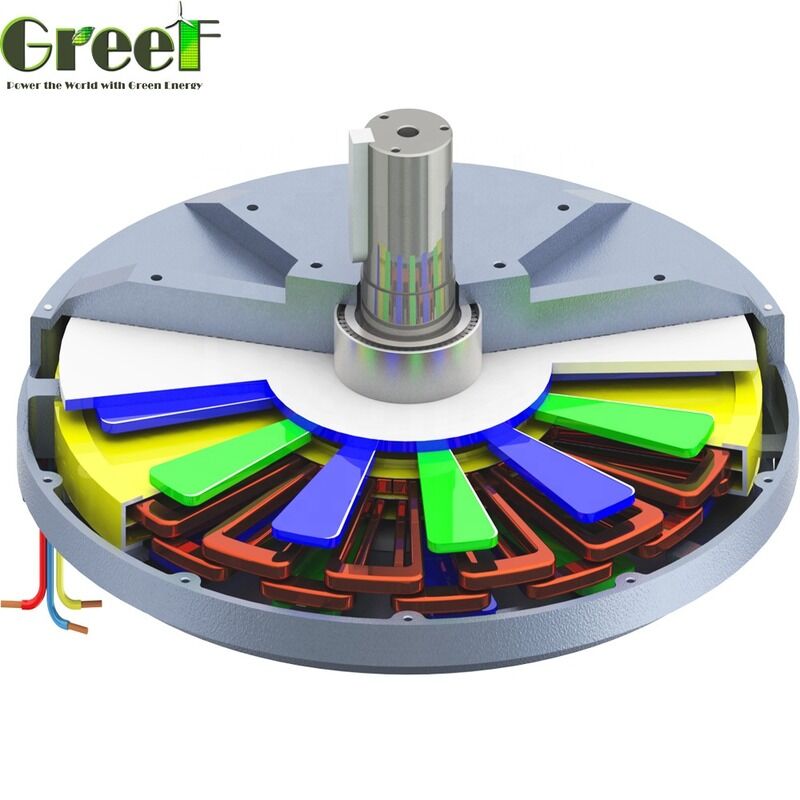

In contrast, our disc-type generator design channels the magnetic flux in an axial direction. This innovative approach removes the need for an iron core entirely, effectively eliminating the associated core losses.
Our latest innovation incorporates the cutting-edge “Precise Coil” technology, which eliminates hysteresis and gear notch effects. This advancement ensures an exceptionally low starting torque of less than 0.3 N·m, enhancing overall performance and efficiency.
We have replaced traditional motors with a disc coreless motor design. This unique approach significantly reduces both the volume and weight of the unit, making it more compact and lightweight without compromising on power.
Utilizing specialized coreless motor technology, our design overcomes the common bottlenecks associated with low-speed wind energy conversion. This results in a higher utilization rate and improved energy harvesting capabilities.
The specially engineered structure offers a superior power-to-volume and power-to-weight ratio. Additionally, it boasts an extended operational lifespan—lasting up to eight times longer than conventional motors—ensuring dependable long-term use.
Featuring a gearless, direct drive configuration, this low RPM generator minimizes mechanical complexity, leading to reduced maintenance requirements and increased durability.
Built with high-standard, quality components, the generator is designed to operate reliably in demanding and extreme conditions commonly encountered in wind turbine applications.
The generator achieves excellent efficiency due to its low mechanical resistance, minimizing energy losses and maximizing output.
An aluminum alloy outer frame combined with a specially designed internal structure ensures effective heat dissipation, maintaining optimal operating temperatures.
Various parameters such as voltage, speed, power, and frequency can be customized according to specific requirements, offering flexible integration possibilities.
Equipped with H class insulation and vacuum pressure impregnation, the motor is well-protected against environmental stresses. Additionally, superior heat dissipation can be further enhanced with optional fan cooling.
| Product Name | Axial Flux Coreless Generator |
| Type | Permanent Magnet Generator |
| Poles | 16-48 |
| Material | Aluminum Alloy |
| Blade Material | Aluminium Alloy |
| Cooling Method | Air Cooling |
| Rated Power | 50W-100kW |
| Voltage Range | 12-450V Customized |
| Rated Rotor Speed | 60rpm-700rpm |
| Efficiency | Up To 92% |
This Axial Flux Coreless Generator features low start torque and higher reliability, delivering high efficiency for various power generation applications.
Vertical-axis wind turbines represent a unique type of wind energy technology. Unlike traditional horizontal-axis turbines, these turbines have blades that rotate around a vertical shaft. This design offers advantages in terms of being able to capture wind from any direction without needing to reorient the turbine.
In addition to wind power, small-scale hydropower systems provide an effective means of generating renewable energy from flowing water sources. These systems are typically installed on rivers or streams and are designed to harness the kinetic energy of water to produce electricity on a smaller, more localized scale.
Together, vertical-axis wind turbines and small-scale hydropower technologies contribute to diversified renewable energy solutions, especially suitable for decentralized energy generation and applications in remote or off-grid locations.
Greef offers customized Coreless Permanent Magnet Generators under the model number GDG, originating from Qingdao. Our generators are CE certified and designed with high-quality aluminum alloy material, ensuring durability and efficient air cooling. With a rated power range from 50W to 100kW, these generators feature low start torque and multi-poles design, delivering large output power suitable for various applications.
We provide flexible customization options including a voltage range from 12V to 450V tailored to your specific needs. The blade material is also crafted from aluminum alloy to complement the robust construction and performance. Each unit is carefully packaged using foam and plywooden cases to guarantee safe delivery.
Our minimum order quantity is 1 set, with a negotiable price to accommodate different project scales. Delivery time is approximately 25 working days, and we accept multiple payment terms such as T/T, Western Union, MoneyGram, and L/C. Trust Greef for reliable supply ability and excellent product customization services for your coreless permanent magnet generator requirements.
Product Packaging:
The Coreless Permanent Magnet Generator is carefully packaged to ensure maximum protection during transit. Each unit is securely placed in a custom-fitted foam insert within a sturdy cardboard box to prevent any movement or damage. The packaging includes anti-static materials to protect the electronic components from static electricity. Additionally, the box is labeled with handling instructions and product information for easy identification.
Shipping:
We offer reliable shipping options to deliver the Coreless Permanent Magnet Generator safely to your location. The product can be shipped via standard ground, expedited, or express delivery services depending on your preference. All shipments are tracked and insured to guarantee safe arrival. International shipping is also available with proper customs documentation and compliance with import regulations.
