Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Low Noise Operation for Precision Equipment

Brand Name:

Greef

Certification:

Model Number:

GDG

Request A Quote

Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Low Noise Operation for Precision Equipment

Product Details

Power:

0.2-100 KW

Shell Material:

Aluminum Alloy

Winding Method:

Start Torque:

<0.03N/M

Efficiency:

>92%

Phase Type:

3 Phase

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

High Efficiency (>92%) Coreless Permanent Magnet Generator with Low Start Torque (<0.03 N*m) and Axial Flux Design for Industrial Applications

Get Best Price

High Efficiency >92% Coreless Permanent Magnet Generator with Low Start Torque <0.03N/M and Coreless Wire Coil Stator

Get Best Price

High Efficiency (>92%) Coreless Permanent Magnet Generator with Low Start Torque (<0.03N/M) and Rare Earth Permanent Magnet for Industrial Applications

Get Best Price

High Efficiency Coreless Permanent Magnet Generator with Aluminum Alloy Shell and Low Noise Operation for Microgrid Systems

Get Best Price

Contact Now

Product Description

Start Torque Less Than 0.03N·M Coreless Permanent Magnet Generator

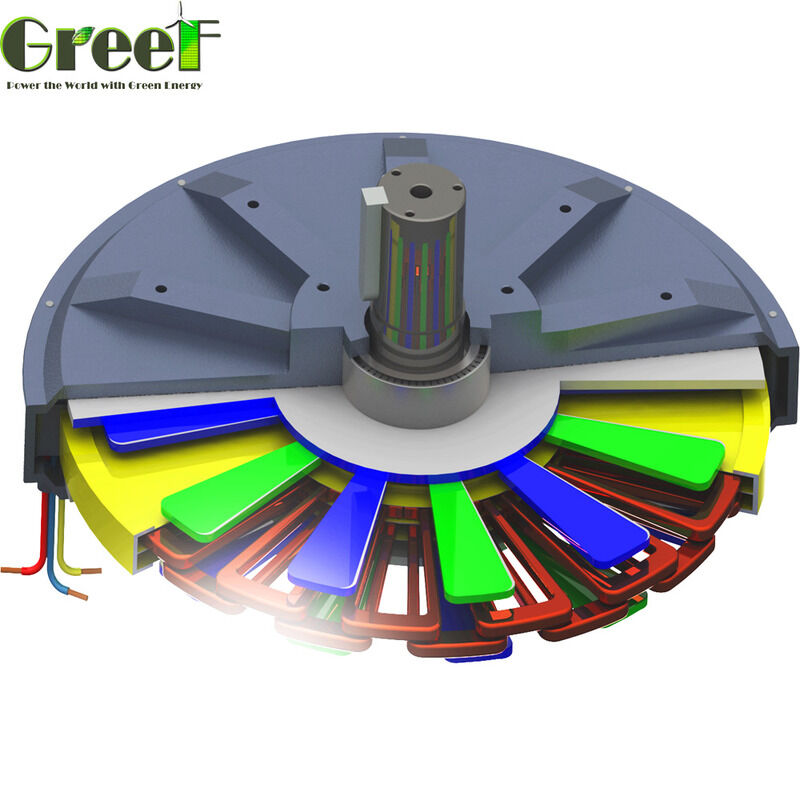

The GREEF NEW ENERGY GDG series features a disc-type permanent magnet generator designed without an iron core. This unique generator adopts a disc-shaped configuration where the spindle and rotor are stacked together. The stator is fixed centrally, while the rotor rotates on both sides of the stator. Notably, the spindle contains only windings and does not include an iron core.

Both the stator and rotor take the form of flat discs and utilize axial air gap magnetic flux. They are arranged alternately along the axial direction. Thanks to its relatively short axial length combined with a large diameter, this disc generator easily supports a multi-pole structure. This design results in a high power-to-mass ratio and a low speed rating.

The GDG series offers several advantages, including low startup wind speed, compact size, reduced energy consumption, light weight, and high efficiency. Its compact structure and superior performance make it ideal for use in direct-drive vertical axis wind turbines. The design specifically minimizes resistance to wind due to the rotor's placement on the turbine's vertical axis.

There are two variations of the GDG series disc-type permanent magnet generators: the outer rotor and inner rotor types. In the outer rotor model, the rotor shaft does not rotate the casing, and cables are routed through the center of the shaft. Conversely, in the inner rotor model, the casing remains stationary while the shaft rotates, and cables are routed outside the casing.

Key Features

Low Start Torque Technology: Eliminates hysteresis and gear notch effects, resulting in an exceptionally low starting torque of less than 0.1 N·m for smooth and efficient operation
High Efficiency: Coreless design significantly reduces mechanical resistance and energy loss, enhanced by innovative "Precise Coil" technology
Advanced Magnetic Design: Utilizes rare earth permanent magnets with multiple poles and small air gap for high power density and substantial output power
Maintenance-Free Gearless Direct Drive: Brushless direct drive system eliminates maintenance needs, reducing downtime and operational costs
Enhanced Reliability: Special structural design improves power-to-volume and power-to-weight ratios, with lifespan eight times longer than traditional generators
Improved Low Wind Speed Utilization: Enables efficient operation even at low wind speeds, increasing overall energy capture
Excellent Heat Dissipation: Aluminum alloy outer frame with specially designed internal structure ensures superior heat dissipation for enhanced durability

Technical Parameters

Parameter	Specification
Winding Method	Y
Generator Shell Material	Aluminum Alloy
Material	Aluminum Alloy
Rotor	Rare Earth Permanent Magnet
Efficiency	>92%
Power	0.2-100 KW
Shaft Material	Steel
Phase Type	3 Phase
Start Torque	<0.03N·M
Mounting Type	Flange Or Foot Mounted

This coreless permanent magnet generator features an inner-rotor design, offering large output power ranging from 0.2 to 100 KW. It is highly efficient with over 92% efficiency and can be customized to meet specific application requirements.

Applications

Wind Power Generation: Substantial potential in megawatt-class wind turbines, enhancing output density and overall efficiency while reducing iron losses and hysteresis losses
Renewable Energy: Applications across solar and wind power systems with efficient energy conversion and reliable operation
Other Industrial Applications: Suitable for scenarios demanding efficient, lightweight, and dependable power sources, including backup or auxiliary power supplies
Customized Applications: Adaptable design allows modification of generator power, rotational speed, and output voltage to suit diverse application needs

Customization Options

Greef offers customized Coreless Permanent Magnet Generators, model GDG, originating from Qingdao. Our generators are designed with a robust inner/outer rotor structure, providing large output power and high power density for various applications. As an outer-rotor generator, it ensures efficient performance with low noise operation, making it ideal for sensitive environments.

With a power range from 0.2 to 100 KW and a 3-phase configuration, our generators are built using high-quality steel shafts to ensure durability and reliability. Each unit is CE certified, guaranteeing compliance with international standards.

We offer flexible customization options to meet your specific needs, with a minimum order quantity of just 1 set. Pricing is negotiable to suit your project requirements. Packaging is handled carefully using foam and plywooden cases to ensure safe delivery within 25 working days.

Payment terms include T/T, Western Union, MoneyGram, and L/C, supporting convenient transactions worldwide. Trust Greef's Coreless Permanent Magnet Generators for superior performance and tailored solutions backed by strong supply ability.

Packing and Shipping

Product Packaging: The Coreless Permanent Magnet Generator is carefully packaged to ensure safe delivery and optimal protection during transit. Each unit is securely wrapped in anti-static bubble wrap to prevent any damage from shocks or vibrations. The wrapped generator is then placed in a custom-fitted foam insert to hold the product firmly in place within a sturdy, double-walled corrugated cardboard box. Additional packing materials such as foam peanuts or air cushions may be added to fill any empty spaces and provide extra cushioning. The outer box is labeled with handling instructions, product details, and shipping information to facilitate smooth logistics and handling.

Shipping: We offer reliable shipping options to deliver the Coreless Permanent Magnet Generator safely and promptly to your location. Shipping methods include standard ground shipping, expedited air freight, and international courier services, depending on your requirements and destination. Each shipment is tracked with a unique tracking number provided upon dispatch, allowing you to monitor the delivery status in real time. We ensure compliance with all applicable shipping regulations and provide necessary documentation for customs clearance in case of international shipments. Our packaging and shipping processes are designed to minimize transit time and maximize the protection of the product.

Ratings& Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

L*s

Czech Republic May 4.2023

Helpful (4)

“I built a small pico hydro system on the creek behind my off-grid cabin. The water head is only 3 meters and flow rate around 0.2 m³/s – too low for most generators. This axial flux coreless unit starts generating usable power at just 150 RPM. No cogging, no iron loss, and it’s silent. I’m getting 300-400W continuously, 24/7. My old induction generator would barely light an LED at that speed. Absolutely perfect for low-head hydro.”
