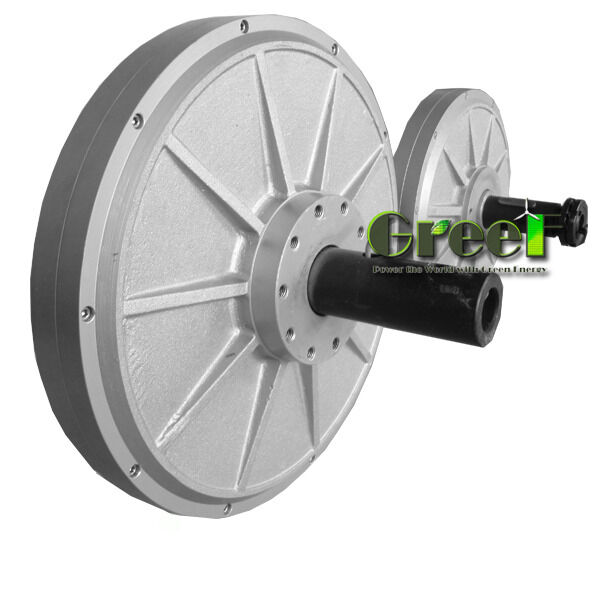

High Efficiency Coreless Permanent Magnet Generator with Aluminum Alloy Shell and Low Noise Operation for Microgrid Systems

The GREEF NEW ENERGY GDG series disc type permanent magnet generator features an innovative design with spindle and rotor assembled in a disc shape. The stator remains fixed at the center while the rotor rotates on both sides. Notably, the spindle contains only windings without an iron core.

Both stator and rotor adopt a flat disc structure utilizing axial air gap magnetic flux, arranged alternately along the axial direction. The generator's short axial length combined with large diameter supports multi-pole configuration, resulting in high power-to-mass ratio. This design enables effective low-speed operation, low wind speed starting, compact size, and low energy consumption.

Beyond being lightweight, the GDG series offers compact structure and high efficiency, making it particularly suitable for direct-drive vertical axis wind turbines. The rotor's vertical axis placement minimizes wind resistance, enhancing overall turbine performance.

The GDG series is available in two variants: outer rotor and inner rotor. The outer rotor type features rotating rotor shaft with stationary casing and center cable routing. The inner rotor type has rotating shaft with fixed casing and external cable discharge.

• Low Start Torque Technology: Eliminates hysteresis and gear notch effects with exceptionally low starting torque of less than 0.1 N*m
• High Efficiency: No core minimizes mechanical resistance and energy loss, enhanced by "Precise Coil" technology
• Advanced Magnet System: Rare earth permanent magnet with multiple poles, small air gap, and high power density for substantial output power
• Maintenance-Free Design: Gearless direct drive, brushless operation with improved durability
• Higher Reliability: Superior power-to-volume and power-to-weight ratio with lifespan eight times longer than traditional generators
• Low Wind Speed Performance: Enables higher utilization for wind turbines operating in low wind speed conditions
• Excellent Heat Dissipation: Aluminum alloy outer frame with specially designed internal structure for outstanding thermal management

• Wind Power Generation: Significant potential in megawatt-class wind turbines, enhancing output density and wind energy conversion efficiency. Absence of iron core reduces iron losses and hysteresis losses for higher operational efficiency.
• Renewable Energy Applications: Widely utilized across solar and wind power systems for efficient energy conversion and reliable operation.
• Other Industrial Uses: Essential for efficient, lightweight, and dependable power supplies in diverse industrial sectors, including backup or auxiliary power sources for critical equipment.
• Customized Solutions: Flexible structural design allows tailoring of generator power, rotational speed, and output voltage to meet specific customer requirements across various application scenarios.

Greef offers customized Coreless Permanent Magnet Generators (model GDG) with CE certification, ensuring high quality and reliability. We specialize in multi-poles designs featuring outer-rotor generator structure with efficiency greater than 92%.

Our generators support 3 phase power configurations with power ranges from 0.2 KW to 100 KW. Minimum order quantity is 1 set with negotiable pricing. Delivery time is typically 25 working days with payment options including T/T, Western Union, MoneyGram, and L/C.

Each unit is carefully packaged using foam and plywood cases to ensure safe delivery. With strong supply capability, Greef is your reliable partner for high-performance coreless permanent magnet generators.

Our Coreless Permanent Magnet Generator is carefully packaged for maximum protection during transit. Each unit is securely enclosed in custom-fitted foam inserts within sturdy, double-walled cardboard boxes to prevent damage from shocks and vibrations.

Packaging materials are environmentally friendly and recyclable, reflecting our commitment to sustainability. Clear labeling facilitates easy handling and identification.

We offer multiple shipping options including standard ground, expedited air, and international freight services. All shipments are tracked and insured. Before dispatch, each generator undergoes thorough quality inspection and functional testing, accompanied by detailed user manual and warranty information.
