Product Description

Start Torque Less Than 0.03N·M Coreless Permanent Magnet Generator

Product Overview

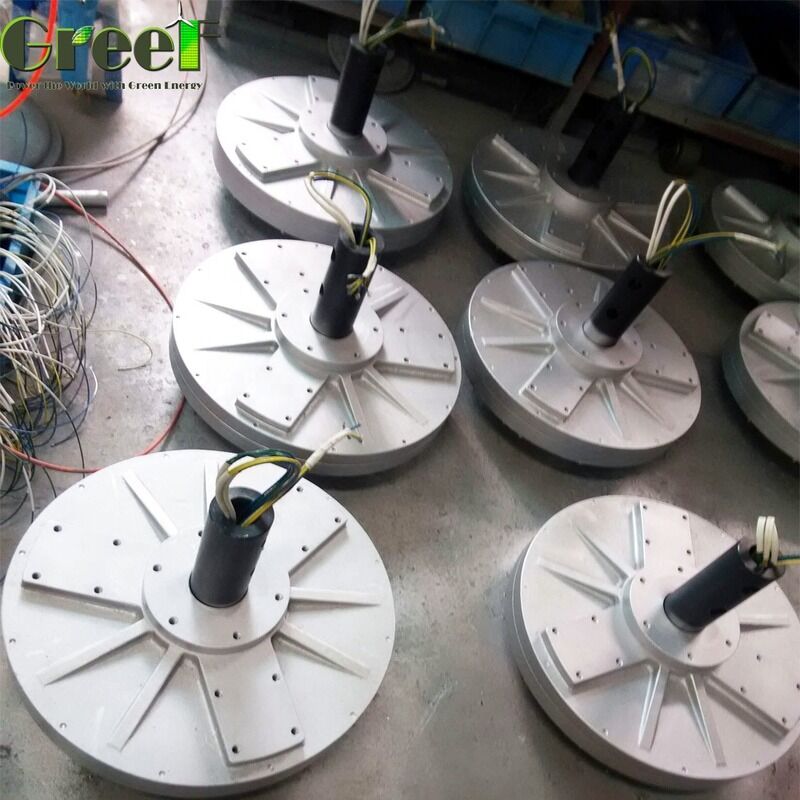

The GREEF NEW ENERGY GDG series disc type permanent magnet generator features an innovative coreless design where the spindle and rotor are assembled in a disc-shaped stack. The stator remains fixed at the center while rotors rotate on both sides, with the spindle containing only windings and omitting traditional iron cores.

Both stator and rotor utilize a flat disc structure with axial air gap magnetic flux, alternately arranged along the axial direction. This configuration enables a short axial length with large diameter, supporting multi-pole design for high power-to-mass ratio, low speed rating, and low wind speed startup capability.

Available in outer and inner rotor models, the GDG series offers compact size, low energy consumption, lightweight construction, and robust efficiency, making it ideal for direct-drive vertical axis wind turbines.

Key Features

Low Start Torque Technology: Starting torque less than 0.1 N·m ensures smooth operation from startup
High Efficiency: Coreless design reduces mechanical resistance and energy loss
Advanced Magnetic Design: Rare earth permanent magnets with multiple poles and small air gap
Gearless Direct Drive: Brush-less design requires no maintenance
Higher Reliability: Eight times longer lifespan than traditional generators
Optimized for Low Wind Speeds: Enhanced utilization in low wind conditions
Excellent Heat Dissipation: Aluminum alloy frame with specialized internal structure

Technical Specifications

Structure	Inner/Outer Rotor
Power	0.2-100 KW
Rotor	Rare Earth Permanent Magnet
Mounting Type	Flange Or Foot Mounted
Winding Method	Y
Noise Level	Low Noise Operation
Start Torque	<0.03N·M (low start torque)
Material	Aluminum Alloy
Stator	Coreless Wire Coil (small air gap)
Phase Type	3 Phase (high efficiency)

Applications

Wind Power Generation: Ideal for megawatt-class wind turbines with enhanced output density
Renewable Energy: Solar and wind power generation systems
Industrial Applications: Backup or auxiliary power sources for critical equipment
Customized Solutions: Tailored parameters for specific operational requirements

Customization Services

Greef offers comprehensive customization for our GDG Coreless Permanent Magnet Generator, manufactured in Qingdao. This outer-rotor generator features coreless wire coil stator and operates with low noise, providing high power density solutions.

Customization Options:
• Power Range: 0.2 to 100 KW
• Mounting: Flange or foot mounted
• Packaging: Foam and plywood cases for safe delivery
• Certification: CE certified
• Minimum Order: 1 set
• Delivery: 25 working days

Contact Information:
Pricing is negotiable with payment terms including T/T, Western Union, MoneyGram, and L/C. Contact Greef today to customize your coreless permanent magnet generator.

Packaging & Shipping

Product Packaging: Each generator is securely placed in custom foam inserts within sturdy double-walled cardboard boxes with moisture-resistant wrapping and clear handling instructions.

Shipping: Reliable shipping via trusted carriers with tracking information. Standard or expedited methods available with full insurance coverage for damage protection.
