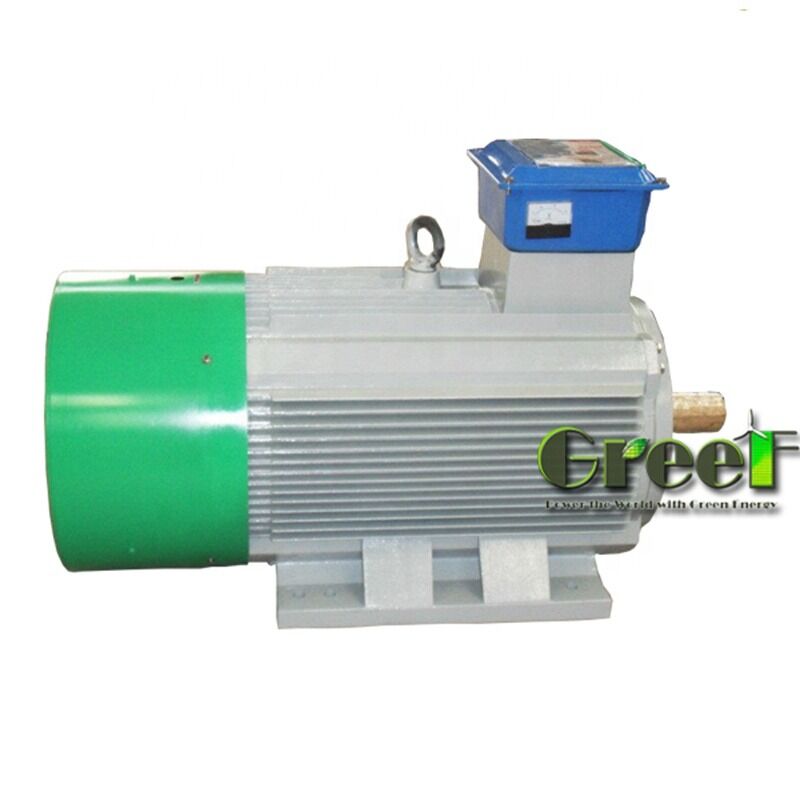

Class F Insulation Permanent Magnet Motor with 50/60HZ Frequency for Heavy Industrial Applications

Class F Insulation Permanent Magnet Motor

50/60HZ Frequency Synchronous Magnet Motor

Heavy Industrial Applications NdFeB Magnet Motor

Brand Name:

Greef

Certification:

Model Number:

TYP

Request A Quote

Product Details

Material:

Neodymium Magnet

Insulation Class:

Class F

Generator Type:

3phase AC Synchronous Motor

Iron Core:

Cold Rolled Silicon Steel Sheet

Winding Material:

100% Copper

Winding Method:

Poweroutput:

500W-5000KW

Classification Of Degrees:

IP54

Highlight:

Class F Insulation Permanent Magnet Motor

50/60HZ Frequency Synchronous Magnet Motor

Heavy Industrial Applications NdFeB Magnet Motor

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,,L/C

Supply Ability

IP54 Brushless Permanent Magnet Motor with NdFeB Magnet and Class F Insulation for Industrial Applications

Get Best Price

Video

Class F Insulation Permanent Magnet Motor with 50/60HZ Frequency for Heavy Industrial Applications

Get Best Price

Video

500W-5000KW Permanent Magnet Motor with 500-3000rpm Speed Range and Class F Insulation for Industrial Applications

Get Best Price

Video

IP54 Permanent Magnet Motor with Class F Insulation and Y Winding Method for 500-3000rpm Speed Range

Get Best Price

Contact Now

Product Description

Class F Insulation Permanent Magnet Motor

NdFeB Magnet Type | 50/60Hz Frequency | Designed for Heavy Industrial Applications

Product Overview

A permanent magnet motor is an advanced electric motor that utilizes permanent magnets instead of field windings to create the primary magnetic field. This innovative design distinguishes it from traditional motors that rely on energized coils for magnetic excitation.

The fundamental operation involves the interaction between the permanent magnets attached to the rotor and the rotating magnetic field produced by the stator windings when energized. This interaction generates the torque needed to drive the motor efficiently.

Compared to conventional electrically excited motors, permanent magnet motors eliminate the need for excitation current, resulting in a simpler and more reliable structure with reduced size and weight. The absence of field copper losses contributes to substantial energy savings and improved overall efficiency.

Key Features

High Efficiency and Energy Conservation for sustainable and cost-effective operation
Consistent Torque Across a Wide Speed Spectrum for reliable performance under varying loads
Durable Bearings with Minimal Upkeep to extend service life and reduce maintenance costs
Premium-Grade Permanent Magnets for superior magnetic efficiency and enhanced performance
Built-in Thermal Protection to ensure safe operation and prevent overheating damage
Synchronous Functionality and Stable Speed Control for precision and stability
Reduced Operating Current for energy savings and reduced electrical load
Lower Temperature Increase for improved reliability and extended component life
Versatile Application Capabilities adaptable to diverse industry needs
Notable Cost Efficiency throughout the product lifecycle

Technical Specifications

Material	Neodymium Magnet
Insulation Class	Class F
Speed	500-3000rpm
Generator Shell Material	Cast Iron
Winding Material	100% Copper
Iron Core	Cold Rolled Silicon Steel Sheet
Winding Method	Y
Frequency	50/60Hz
Shaft Material	Steel
Product Features	Low temperature rise, high power factor motor, smooth torque and speed, high rigidity

Industrial Applications

The TYP series consists of high-efficiency synchronous motors equipped with permanent magnets designed for frequency conversion applications. These motors are known for their superior performance and energy-saving capabilities.

They find extensive use across various industries due to their reliability and efficiency. Common applications include:

Injection Molding Machines
Air Compressors
Pipe Making Equipment
Hydraulic Machinery
Food Processing Machines
Cement Pipe Manufacturing
Plastic Extruders
Wire Drawing Machines
Pharmaceutical Equipment

Customization Options

Model: TYP Series

Power Range: 500W to 5000KW

Magnet Temperature: Up to 120℃ maximum

Certification: CE Certified

Greef offers customized Permanent Magnet Motors designed and manufactured in China. Our synchronous magnet motors feature high-efficiency design using NdFeB magnets, ensuring superior performance and reliability.

We provide flexible customization services starting from a minimum order quantity of 1 set. Each motor is carefully packaged with foam and plywood cases to ensure safe delivery. Standard delivery time is 25 working days.

Payment Terms: T/T, Western Union, , and L/C

Packaging & Shipping

Each Permanent Magnet Motor is securely placed in a custom-fitted foam insert within a sturdy corrugated cardboard box to prevent movement and absorb shocks during transit.

All packaging materials are environmentally friendly and recyclable. Multiple units are palletized and shrink-wrapped for stability and ease of handling. Motors are clearly labeled with "Fragile" and "This Side Up" handling instructions.

We offer various shipping options including expedited and standard delivery services. Tracking information is provided promptly after shipment to allow real-time order monitoring.

Our packaging and shipping processes comply with international standards to guarantee perfect condition upon arrival.
