Home > products > Coreless Permanent Magnet Generator >

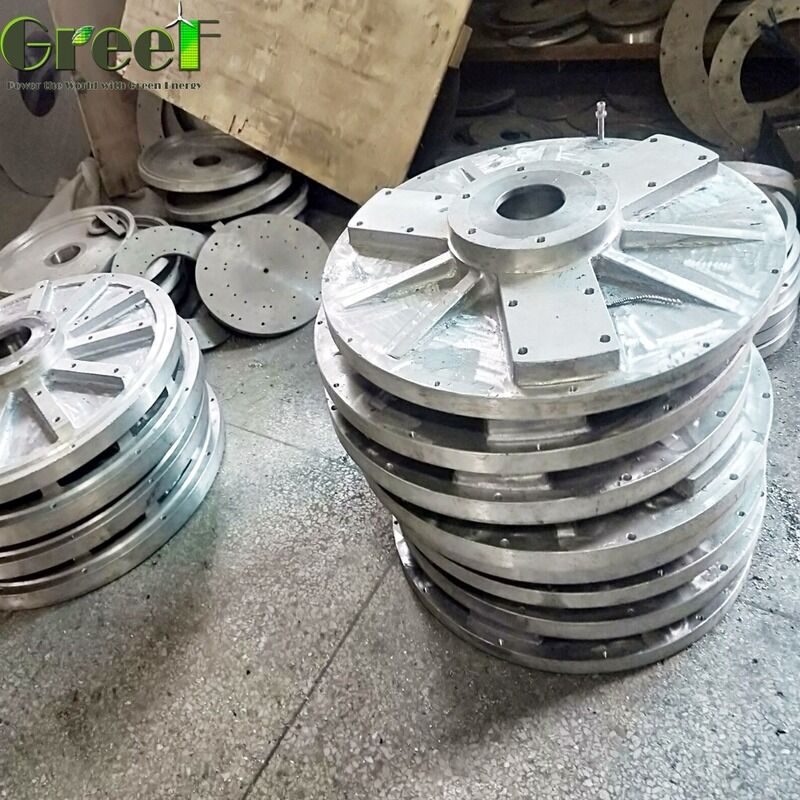

Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency (>92%) for Industrial Use

Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency (>92%) for Industrial Use

Aluminum Alloy Coreless Permanent Magnet Generator

Low Start Torque Axial Flux Generator

High Efficiency Permanent Magnet Alternator

Brand Name:

Greef

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency (>92%) for Industrial Use
Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency (>92%) for Industrial Use
Product Details
Generator Material:
Aluminum Alloy
Insulating Resistance:
100Mohm Min(501V DC)
Efficiency:
>92%
Speed:
100-500RPM
Corestructure:
Coreless
Frequency:
50/60hz
Shaft Type:
Horizontal And Vertical
Rated Power:
500W - 100 KW
Highlight:

Aluminum Alloy Coreless Permanent Magnet Generator

,

Low Start Torque Axial Flux Generator

,

High Efficiency Permanent Magnet Alternator

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Payment Terms
T/T,Western Union,,L/C
Supply Ability
Supply Ability
RELATED PRODUCTS
Good price Air Cooled Coreless Permanent Magnet Generator with 100Mohm Min Insulating Resistance and Low Start Torque for Industrial Applications online Video

Air Cooled Coreless Permanent Magnet Generator with 100Mohm Min Insulating Resistance and Low Start Torque for Industrial Applications

Get Best Price
Good price Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-Free Design for Industrial Applications online Video

Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-Free Design for Industrial Applications

Get Best Price
Good price Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Industrial Applications online Video

Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Industrial Applications

Get Best Price
Good price Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Wind Power online Video

Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Wind Power

Get Best Price
Contact Us
Contact Now
Product Description
Horizontal And Vertical Shaft Type Coreless Permanent Magnet Generator
Coreless permanent magnet generator diagram showing disc-type design Internal structure of GDG series generator with axial flux design Generator application in wind turbine systems
Product Overview
The GREEF NEW ENERGY GDG series disc-type permanent magnet generator features an innovative coreless design where both spindle and rotor are arranged in a disc shape with the stator positioned centrally. The rotor rotates on both sides of the stator, while the spindle contains only windings without an iron core.
Both stator and rotor are constructed as flat disc structures utilizing axial air gap magnetic flux, alternately arranged along the axial direction. The generator's short axial length combined with large diameter enables a multi-pole structure, delivering high power-to-mass ratio and efficient low-speed operation.
Available in outer rotor and inner rotor variants, the GDG series offers compact size, low energy consumption, lightweight construction, and high efficiency, making it ideal for direct-drive vertical axis wind turbines.
Key Features
  • Low Start Torque Technology: Eliminates hysteresis and gear notch effects with starting torque less than 0.1 N*m
  • High Efficiency: Coreless design reduces mechanical resistance and energy loss with "Precise Coil" technology
  • Advanced Magnetic Design: Rare earth permanent magnets with multiple poles and small air gap for high power density
  • Gearless Direct Drive: Brushless, maintenance-free system with increased reliability
  • Higher Reliability and Longevity: Special structural design provides eight times longer lifespan than traditional generators
  • Enhanced Wind Turbine Utilization: Improves efficiency in low wind speed conditions
  • Excellent Heat Dissipation: Aluminum alloy outer frame with specialized internal structure
Technical Specifications
Parameter Specification
Frequency 50/60 Hz
Rated Power 500W - 100 KW
Core Structure Coreless (Inner-rotor generator)
Generator Material Aluminum Alloy
Winding Method Y
Efficiency >92% (High efficiency)
Speed 100-500 RPM
Shaft Type Horizontal and Vertical
Cooling Method Air Cooled
Insulating Resistance 100 MΩ Min (501V DC)
Reliability Higher reliability
Applications
  • Wind Power Generation: Ideal for megawatt-class wind turbines with increased output power density and reduced iron-related losses
  • Renewable Energy: Extensive use in solar power and other sustainable energy systems
  • Industrial Applications: Backup and auxiliary power supplies for critical machinery and equipment
  • Customized Applications: Flexible structure allows tailoring of power output, speed, and voltage parameters
Customization Options
Greef offers customized Coreless Permanent Magnet Generators (model GDG) with CE certification. We supply 3-phase generators with rated power from 500W to 100KW and operating speeds of 100-500 RPM.
Customization Features:
  • Adjustable power rating, speed, and technical specifications
  • Minimum order quantity: 1 set
  • Packaging: Foam and plywood cases
  • Delivery time: Approximately 25 working days
  • Payment terms: T/T, Western Union, , L/C
Packaging and Shipping
Each generator is carefully packaged with anti-static foam and placed in a custom-fitted cardboard box, further enclosed in an outer carton with additional padding. All materials are environmentally friendly and recyclable.
Shipping options include standard ground, expedited air freight, and international shipping with tracking numbers provided upon dispatch.
Recommended: Inspect package immediately upon receipt and report any damage within 48 hours.
