Home > products > Coreless Permanent Magnet Generator >

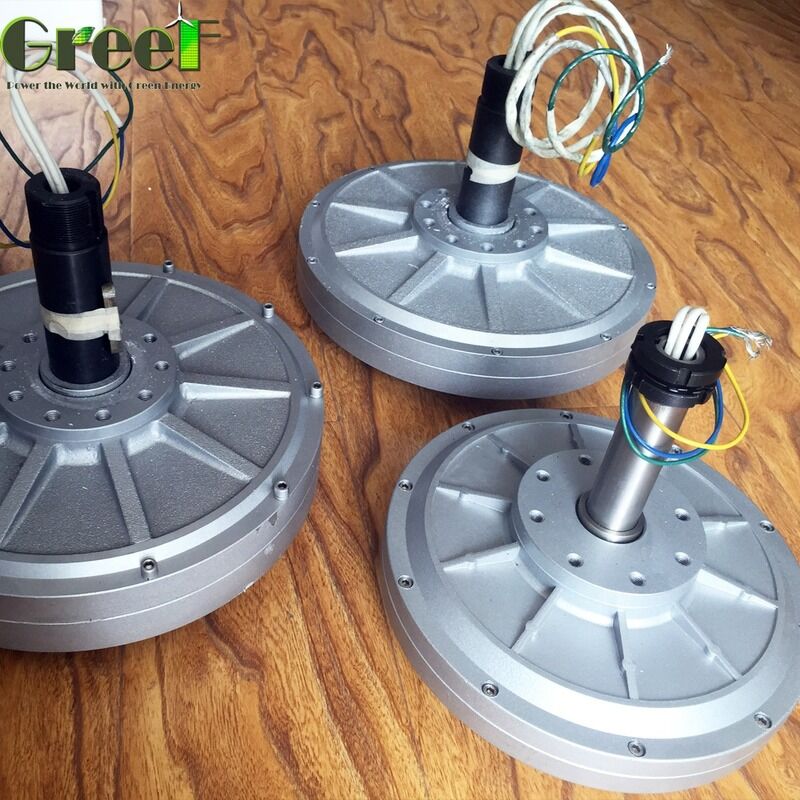

100-500RPM Coreless Permanent Magnet Generator with High Efficiency (>92%) and Coreless Structure for Industrial Applications

100-500RPM Coreless Permanent Magnet Generator with High Efficiency (>92%) and Coreless Structure for Industrial Applications

100-500RPM Coreless Permanent Magnet Generator

Coreless Structure Axial Flux Generator

High Efficiency Permanent Magnet Alternator

Brand Name:

Greef

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
100-500RPM Coreless Permanent Magnet Generator with High Efficiency (>92%) and Coreless Structure for Industrial Applications
100-500RPM Coreless Permanent Magnet Generator with High Efficiency (>92%) and Coreless Structure for Industrial Applications
Product Details
Rated Power:
500W - 100 KW
Efficiency:
>92%
Shaft Type:
Horizontal And Vertical
Phase Type:
3
Corestructure:
Coreless
Generator Material:
Aluminum Alloy
Coolingmethod:
Air Cooled
Speed:
100-500RPM
Highlight:

100-500RPM Coreless Permanent Magnet Generator

,

Coreless Structure Axial Flux Generator

,

High Efficiency Permanent Magnet Alternator

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Payment Terms
T/T,Western Union,,L/C
Supply Ability
Supply Ability
RELATED PRODUCTS
Good price Air Cooled Coreless Permanent Magnet Generator with 100Mohm Min Insulating Resistance and Low Start Torque for Industrial Applications online Video

Air Cooled Coreless Permanent Magnet Generator with 100Mohm Min Insulating Resistance and Low Start Torque for Industrial Applications

Get Best Price
Good price Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-Free Design for Industrial Applications online Video

Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-Free Design for Industrial Applications

Get Best Price
Good price Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Industrial Applications online Video

Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Industrial Applications

Get Best Price
Good price Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Wind Power online Video

Aluminum Alloy Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Wind Power

Get Best Price
Contact Us
Contact Now
Product Description
Speed 100-500RPM Coreless Permanent Magnet Generator
GDG series disc-type permanent magnet generator diagram Coreless generator internal structure Generator application in wind turbine systems
Product Overview
The GREEF NEW ENERGY GDG series disc-type permanent magnet generator features a unique coreless design with spindle and rotor assembled in a disc shape. The stator is fixed at the center while the rotor rotates on both sides, utilizing axial air gap magnetic flux for compact and efficient operation.
With its short axial length and large diameter, this generator easily accommodates multi-pole structures, offering high power-to-mass ratio, low-speed operation capability, and low wind speed starting. Available in both outer rotor and inner rotor variants to suit various application requirements.
Key Features
  • Low Start Torque: Less than 0.1 N*m, eliminating hysteresis and gear notch effects
  • High Efficiency: Coreless design reduces mechanical resistance and energy loss
  • Advanced Magnetic Design: Rare earth permanent magnets with multiple poles and small air gap
  • Gearless Direct Drive: Brushless and maintenance-free operation
  • Enhanced Reliability: Eight times longer lifespan than traditional generators
  • Optimized Performance: Excellent low wind speed utilization
  • Superior Heat Dissipation: Aluminum alloy frame with unique internal structure
Technical Specifications
Parameter Specification
Phase Type 3
Core Structure Coreless (small air gap)
Speed 100-500 RPM
Winding Method Y
Cooling Method Air Cooled
Rated Power 500W - 100 KW (high power density)
Shaft Type Horizontal And Vertical
Rated Voltage 48V / 96V
Frequency 50/60 Hz
Insulating Resistance 100 Mohm Min (501V DC)
Customization Available
Applications
  • Wind Power Generation: Ideal for megawatt-class wind turbines, enhancing output density and efficiency
  • Renewable Energy Systems: Solar and wind installations requiring high energy conversion efficiency
  • Industrial Applications: Backup and auxiliary power sources for critical machinery
  • Customized Solutions: Tailored configurations for specific industrial requirements
Customization Services
Greef offers comprehensive customization for the GDG series Coreless Permanent Magnet Generator. Features include:
Model: GDG
Efficiency: >92%
Power Range: 500W - 100KW
Speed: 100-500 RPM
Certification: CE Certified
Minimum Order: 1 set
Packaging: Foam and plywood cases for safe delivery
Delivery: Approximately 25 working days
Payment: T/T, Western Union, , L/C
Packaging & Shipping
Packaging: Each unit is securely wrapped in anti-static and shock-absorbent materials, placed in custom-fitted cardboard boxes with additional padding. All materials are eco-friendly.
Shipping: Worldwide shipping with tracking and insurance available. Customers receive tracking numbers upon dispatch. Contact customer service for bulk orders or special requirements.
Ratings& Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

L
L*s
Czech Republic May 4.2023
Helpful (4)
“I built a small pico hydro system on the creek behind my off-grid cabin. The water head is only 3 meters and flow rate around 0.2 m³/s – too low for most generators. This axial flux coreless unit starts generating usable power at just 150 RPM. No cogging, no iron loss, and it’s silent. I’m getting 300-400W continuously, 24/7. My old induction generator would barely light an LED at that speed. Absolutely perfect for low-head hydro.”
Review Image
Review Image
Review Image
