Coreless Permanent Magnet Generator with Low Start Torque High Efficiency (>92%) and Maintenance-Free Design for Wind Power

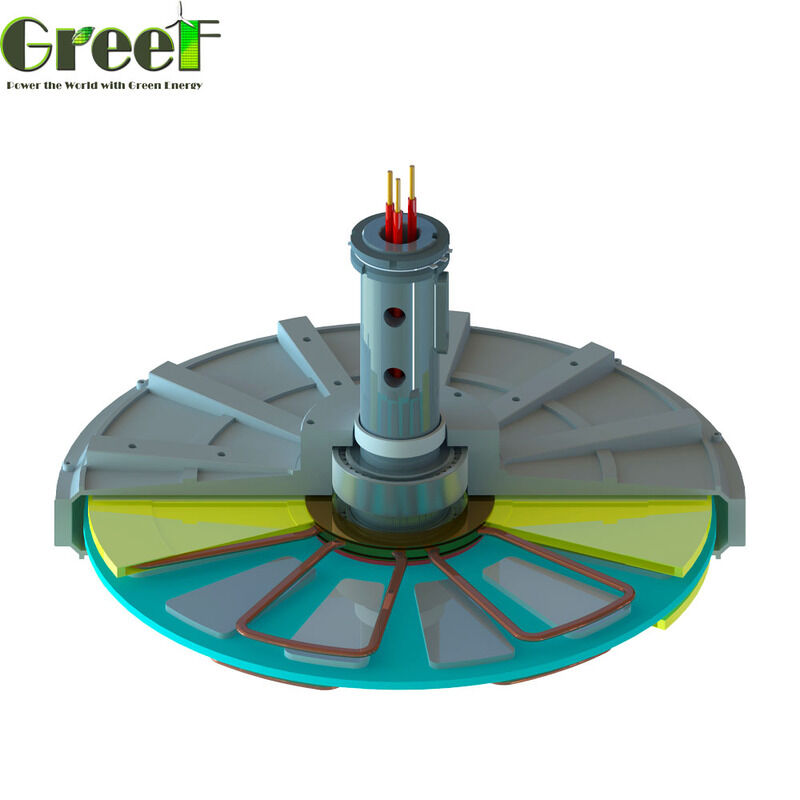

The GREEF NEW ENERGY GDG Series Disc Type Permanent Magnet Generator features a unique iron-core-free design with spindle and rotor arranged in a stacked disc configuration. The stator remains fixed at the center while the rotor rotates on both sides, containing only windings without an iron core.

Both stator and rotor employ a flat disc structure with axial air gap magnetic flux, positioned alternately along the axial direction. This design enables a multipole structure with short axial length and large diameter, significantly boosting the power-to-weight ratio.

Available in outer rotor and inner rotor configurations: outer rotor design features stationary shaft with rotating casing and center cable routing, while inner rotor design has fixed casing with rotating shaft and external cable routing.

• Low Start Torque Technology: Less than 0.1 N*m starting torque with no hysteresis or gear notches effects
• High Efficiency: Eliminates core mechanical resistance and energy losses with "Precise Coil" technology
• Advanced Magnetic Design: Rare earth permanent magnets with multiple poles and small air gap for high power density
• Gearless Direct Drive: Brushless design ensures maintenance-free operation
• Enhanced Reliability: Special structural design provides higher power-to-volume and power-to-weight ratios with 8x longer lifespan
• Low Wind Speed Performance: Improved efficiency in minimal wind conditions
• Excellent Heat Dissipation: Aluminum alloy outer frame with specialized internal structure

• Wind Power Generation: Ideal for megawatt-class wind turbines with enhanced output density and reduced iron/hysteresis losses
• Renewable Energy: Suitable for solar power and other renewable energy conversion systems
• Industrial Applications: Backup and auxiliary power units for critical industrial equipment
• Customized Solutions: Flexible design allows tailoring of power output, rotational speed, and voltage parameters

GREEF offers comprehensive customization for our GDG Series Coreless Permanent Magnet Generators, manufactured in Qingdao with CE certification. Customize rated power from 500W to 100KW with 48V or 96V voltage options.

Product Packaging: Each generator is wrapped in anti-static foam and placed in custom-fitted cardboard boxes with additional cushioning. Secure sealing and proper labeling ensure safe transit.

Shipping: Worldwide shipping with tracking and insurance. Standard and expedited delivery options available. Customers receive tracking numbers upon dispatch for real-time shipment monitoring.
