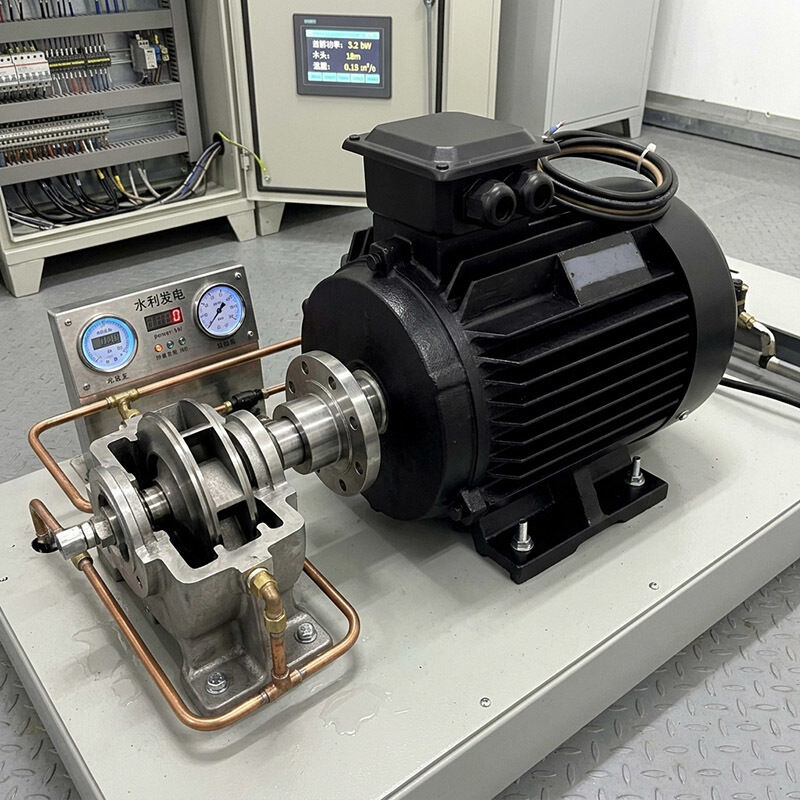

Insulate Grade H Permanent Magnet Generator with NdFeB Magnet and 20-3000rpm Rated Speed for Industrial Equipment

The fundamental concept behind a permanent magnet generator lies in its rotor, which is constructed using permanent magnet materials. These magnets create a steady and consistent magnetic field within the generator.

When an external power source—such as a wind turbine, water turbine, or engine—drives the rotor to spin, the magnetic field produced by the rotor moves relative to the surrounding stator. This movement causes the magnetic field to intersect with the conductors embedded in the stator windings.

Based on the laws of electromagnetic induction, this interaction induces an electromotive force (EMF) within the stator windings. By connecting an external electrical circuit to the generator, this induced EMF allows for the flow of electrical current, thereby enabling the generator to deliver electrical power.

• Exceptional high efficiency ensuring optimal performance with minimal energy loss
• Significant power saving capabilities for environmentally friendly and cost-effective operation
• High power factor maximizing electrical power utilization and enhancing system performance
• Compact, small size design for easy installation and space-saving applications
• High power density delivering robust power output relative to size
• Large starting pitch for smooth and reliable operation from startup
• Minimal operational noise creating a quieter working environment
• Low temperature rise during use improving durability and safety
• High reliability providing consistent performance under various conditions
• Smooth torque and speed control with high rigidity for structural integrity

Wind Power Generation: Key application in modern direct-drive and semi-direct-drive wind turbines, delivering exceptional efficiency for variable-speed operations.

Automotive Sector: Extensively utilized in new energy vehicles as primary traction motors or auxiliary generators in electric and hybrid vehicles.

Offshore Applications: Ideal for ship shaft generators and main/auxiliary power systems in maritime environments due to high reliability and minimal maintenance.

Backup Power Systems: Integrated into diesel and gas generator sets providing fast response times with stable emergency and standby power support.

High-Speed Applications: Well suited for microturbines and flywheel energy storage systems, handling rapid rotational speeds efficiently.

Industrial Settings: Prized for high power density and utmost reliability in special-purpose applications requiring uninterrupted power.

We provide flexible product customization services to tailor the generator to your specific requirements. With a minimum order quantity of just 1 set, our pricing is negotiable to accommodate your budget.

The generator features an insulation grade of H and an insulating resistance of 100Mohm minimum at 500Vdc, ensuring durability and safety in various operating conditions.

Additional Specifications:

Product Packaging:

The Permanent Magnet Generator is carefully packaged to ensure maximum protection during transit. Each unit is securely placed in a custom-fitted foam insert to prevent movement and absorb shocks. The generator is then enclosed in a sturdy, double-walled corrugated cardboard box designed to withstand handling and stacking. All packaging materials are environmentally friendly and recyclable.

Shipping Information:

We offer worldwide shipping with multiple shipping options to meet your delivery needs. Each package is labeled with handling instructions such as "Fragile" and "This Side Up" to ensure careful transport. Tracking information is provided once the order is dispatched. For larger orders, palletized shipping is available to ensure safe and efficient delivery.
