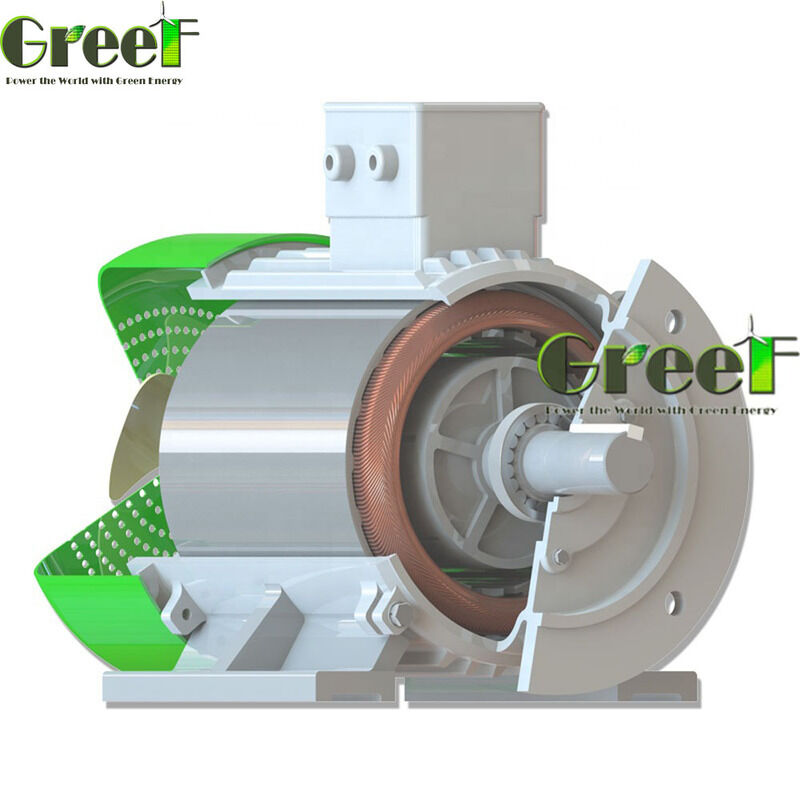

Y Winding Method Permanent Magnet Generator with NdFeB Magnet Type and 500W-5000kW Power Range for Renewable Energy Systems

Y Winding Method Permanent Magnet Generator

500W-5000kW Power Range PMG

NdFeB Magnet Type 3 Phase AC Synchronous Generator

Brand Name:

Greef

Certification:

Model Number:

GDF

Request A Quote

Product Details

Insulating Resistance:

100Mohm Min(500Vdc)

Generator Type:

3phase AC Synchronous Generator

Power Range:

500W-5000kw

Rated Speed:

20-3000rpm

Stator Material:

Copper

Blade Material:

Aluminium Alloy

Winding Method:

Insulate Grade:

Highlight:

Y Winding Method Permanent Magnet Generator

500W-5000kW Power Range PMG

NdFeB Magnet Type 3 Phase AC Synchronous Generator

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T

High Insulating Resistance 100Mohm Min 500Vdc Permanent Magnet Generator with NdFeB Magnet Type and Rated Speed 20-3000rpm

Get Best Price

Video

20-3000rpm Permanent Magnet Generator with Customized Voltage Options and NdFeB Magnet for Automation

Get Best Price

Video

3 Phase AC Synchronous Permanent Magnet Generator with Y Winding Method and Durable Aluminium Alloy Blade for Customized Voltage Applications

Get Best Price

Video

Insulate Grade H Permanent Magnet Generator with NdFeB Magnet and 20-3000rpm Rated Speed for Industrial Equipment

Get Best Price

Contact Now

Product Description

Y Winding Method Permanent Magnet Generator

Product Overview

The fundamental concept behind a permanent magnet generator lies in its rotor, which is embedded with permanent magnet materials to produce a steady magnetic field. This magnetic field remains constant as opposed to being electromagnetically induced.

When an external driving force, commonly known as a prime mover—such as a wind turbine, water turbine, or an engine—turns the rotor, the magnetic field rotates along with it. As this rotating magnetic field passes through the stator windings, it interacts with the conductors embedded within them.

Based on the laws of electromagnetic induction, this interaction causes an electromotive force to be induced in the stator windings. By connecting an external electrical circuit, this induced electromotive force can be harnessed to deliver electrical power to the load.

Key Features

High efficiency for optimal performance with minimal energy consumption
Excellent power factor for enhanced electrical performance
Compact size for easy integration into various systems
High power density providing robust output relative to size
Large starting pitch for smoother startup and operation
Minimal noise levels for quiet working environments
Low temperature rise during operation for enhanced durability
High reliability with components built for rigorous use
Smooth torque and speed control with high rigidity

Technical Parameters

Parameter	Specification
Insulate Grade	H
Rated Speed	20-3000 rpm
Rated Voltage	Customized
Stator Material	Copper
Blade Material	Aluminium Alloy
Winding Method	Y
Frequency	50Hz/60Hz
Magnet Type	NdFeB
Power Factor	0.8
Insulating Resistance	100Mohm Min (500Vdc)

Applications

Wind Power Generation

Modern direct-drive and semi-direct-drive wind turbines heavily rely on this core component. It delivers excellent efficiency, which is particularly advantageous during variable-speed operations, ensuring optimal energy capture in diverse wind conditions.

New Energy Vehicles

Extensively utilized in electric and hybrid vehicles as primary traction motors or auxiliary generators, contributing significantly to vehicle efficiency and sustainability.

Offshore Applications

Well-suited for offshore environments due to exceptional reliability and low maintenance requirements. Commonly implemented in ship shaft generators and marine vessel power systems.

Backup Power Systems

Provides responsive, stable, and reliable emergency and standby power in diesel and gas generator sets, ensuring uninterrupted power supply during critical situations.

High-Speed Applications

Ideal for high-speed drive systems including microturbines and flywheel energy storage solutions, maintaining consistent performance at demanding speeds.

Industrial Uses

Chosen for high power density and exceptional reliability in specialized industrial applications where performance and durability are paramount.

Customization Options

Greef offers customized Permanent Magnet Generator solutions tailored to your specific needs. Our model GDF is a high-quality, 3-phase AC synchronous generator designed as a LOW SPEED magnetic power generator, ideal for applications such as water turbine electric generators.

Power Range: 500W to 5000kW
Rated Voltage: Customized to your requirements
Manufactured in China with NdFeB magnets
Insulating Resistance: Minimum 100Mohm (500Vdc)
CE Certified for quality assurance
Minimum Order: 1 set
Packaging: Protective foam and plywood cases
Delivery Time: 25 working days
Payment Terms: T/T

Packaging and Shipping

Our Permanent Magnet Generators are carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped with protective materials and placed inside sturdy wooden crates or reinforced cardboard boxes, depending on size and shipping requirements.

Additional cushioning such as foam inserts or bubble wrap prevents movement and absorbs shocks. Packaging is clearly labeled with handling instructions, product details, and shipping information to facilitate smooth logistics.

We offer multiple shipping options including sea freight, air freight, and express courier services. Our logistics team coordinates with reliable carriers to provide timely and cost-effective delivery with tracking information provided throughout the process.

Special care is taken for international shipments to handle customs documentation and regulatory compliance, ensuring hassle-free import and export procedures.
