Brand Name:
Greef
Certification:
CE
Model Number:
GDF
Video
Video
The fundamental concept behind a permanent magnet generator lies in the rotor incorporating permanent magnet materials to produce a stable and continuous magnetic field. This magnetic field remains constant as the rotor spins.
When an external prime mover, such as a wind turbine, water turbine, or engine, causes the rotor to rotate, the magnetic field created by the magnets moves relative to the stator. As this rotating magnetic field passes through the conductors of the stator windings, it interacts with them.
Based on the electromagnetic induction principle, this interaction induces an electromotive force within the stator windings. When an external electrical circuit is connected to the generator, this induced electromotive force drives an electric current, allowing electrical energy to be produced and supplied to the load.
| Parameter | Specification |
|---|---|
| Power Range | 500W - 5000kW |
| Installation | Horizontal / Vertical |
| Rated Speed | 20 - 3000 rpm |
| Insulating Resistance | 100 MΩ Min (500Vdc) |
| Insulate Grade | H |
| Winding Method | Y |
| Stator Material | Copper |
| Power Factor | 0.8 |
| Generator Type | 3-phase AC Synchronous Generator |
| Blade Material | Aluminium Alloy |

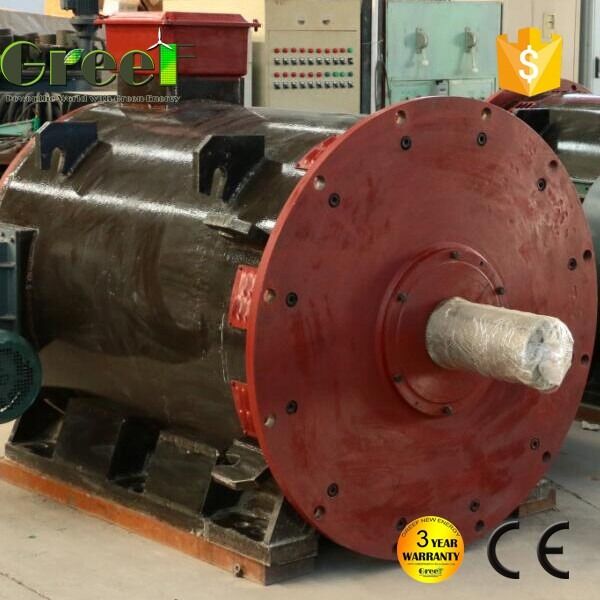

Greef offers customized Permanent Magnet Generators (Model Number: GDF) designed to meet your specific requirements. Our water turbine electric generators are CE certified and ideal for various power needs ranging from 500W to 5000kW.
We can tailor rated voltage and installation orientation (horizontal or vertical) to suit your project. Our generators operate efficiently at rated speeds between 20 and 3000 rpm, with insulation grade H for durability and reliability.
Order Details: Minimum order quantity: 1 set | Competitive pricing negotiable | Delivery time: 25 working days | Payment terms: T/T accepted
Each Permanent Magnet Generator is carefully packaged to ensure perfect condition upon arrival. The generator is wrapped in protective foam padding and placed inside a sturdy, custom-fitted cardboard box designed to absorb shocks and vibrations.
For added protection, boxes are sealed with reinforced tape and clearly labeled with handling instructions. Additional wooden crates or pallets may be used for larger units.
Our shipping process includes thorough inspection before dispatch, and we provide tracking information for real-time shipment monitoring. We work with reliable carriers to ensure timely and safe delivery worldwide.
